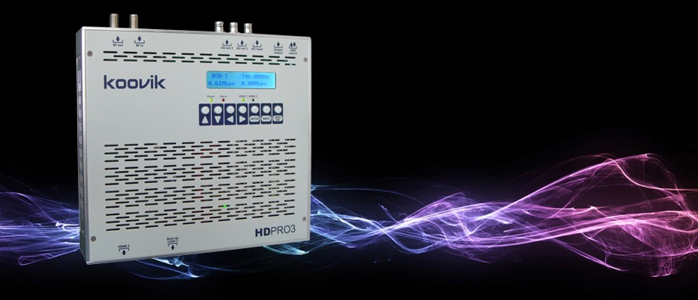

HDPro3, distribution of high definition content in DTT and Gigabit Ethernet coaxial networks

The provider of products and applications for advanced multimedia services, Koovik Professional Solutions, has added to its catalog the HDPro3 high definition modulator and streamer.

The company's new HDPro3 Koovik is a compact high-definition modulator with professional features, which includes an HDMI encoder, a multiplexer with ASI input, a DVB-T modulator (ISDB-T or DVB-C in option) and Multicast Streamer for GigbE networks. Its DVB-T modulator makes the HDPro3 the ideal choice for capturing any HD media source, both live and recorded, and distribute it in a VHF or UHF multiplex. Distribute HD content in DTT coaxial networks, in commercial or residential buildings, University campuses, Hotels, hospitals, Military installations, digital signage, Etc.

Injecting high-definition content into the coaxial network, It does not require wiring modifications and is very flexible ( allows you to move or add more TV receivers according to your needs ). It has a Multicast Streamer to distribute high definition content on GigbE and WiFi LAN networks ( Dual band, 450 mbps ).

Make high-definition video and audio available on the LAN, It offers multiple possibilities not only in the home environment but also for professionals who need to access or record that content from their desktop or laptop, As journalists, Etc. Multiple HDPro3s can be used in the same installation when more HD content is required simultaneously. Taking advantage of the built-in ASI multiplexer, MPEG content generated by multiple HDPro3 can be combined into a single output multiplex without additional accessories.

HDPro3 delivers maximum quality and maximum resolution up to 1080p. Not only does it offer spectacular images, but also allows very clear text messages in digital signage applications. Allows manufacturers and distributors of DTT receivers or televisions, Perform the necessary tests for these devices up to 1080p. Being HDCP compliant, HDPro3 allows you to distribute all kinds of content on your coaxial or GigbE network and record them on any device on those networks (DTT receivers or computer hard drives).

Professional modulation quality, with an MER greater than 42 Db, allows HDPro3 to be used not only in MATV/CATV installations and the most demanding domestic installations, but also for small broadcast broadcasts from a single point, or in university and professional schools for training and demonstration of the effects of transmission parameters including NIT and LCN tables.

blank

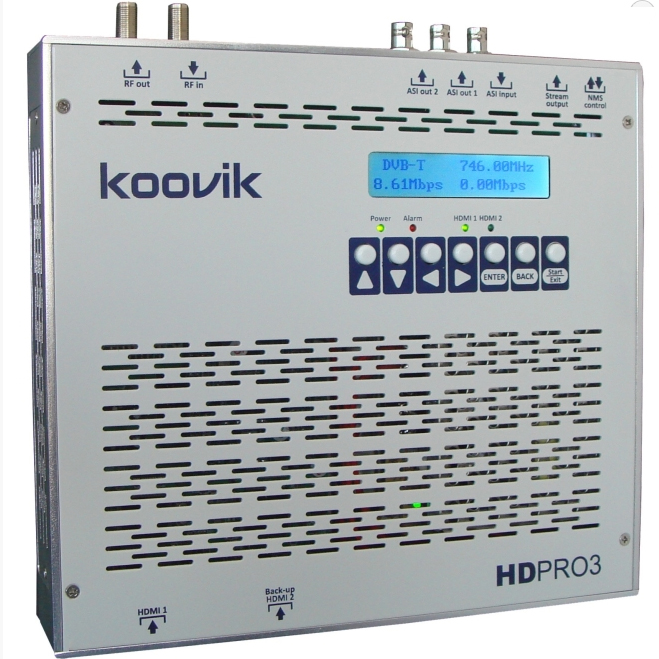

Built-in keyboard and LCD display

The HDPro3 has a built-in keyboard and LCD screen for quick setup without the need for additional tools. The installer can select the appropriate video and audio Bitrate, modulation bandwidth, The constellation, 2K or 8K transmission mode, the save interval, the “Code Rate”, RF output frequency and level, IP multicast network parameters, Etc.

Configuration using Web Manager

When more detailed settings are required or save or reuse a configuration, HDPro3 can be tuned using a built-in web server. Simply connect a laptop to the NMS Ethernet connector (either directly or to the local network), type the IP address in a standard browser, and the configuration menu protected by username and password will appear. No software installation required.

Using NMS, the installer has full access to parameter settings including NIT tables, LCN, Etc. You can also save the configuration parameters for later reuse on this or another computer.
