GT14, new graphical operations terminal (GOT) Mitsubishi Electric standard level

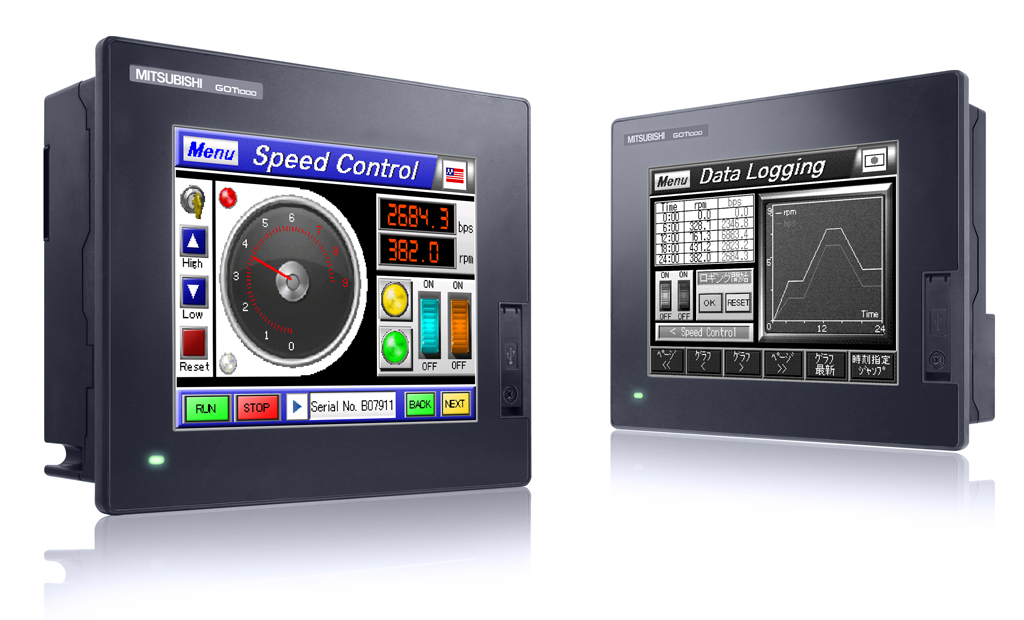

With the addition of the GT14 display to its range of GOT1000 Series operator panels, Mitsubishi Electric Is Setting New Performance Standards in HMI Terminal Panels. With new advanced features and built-in Ethernet communication, the GT14 display is a 5.7 HMI″ Available in monochrome and color versions that provide a screen resolution of 320×240 pixels and a host of features and functions that bring greater flexibility and capability of control systems for various users and applications.

Mitsubishi Electric has expanded its GOT1000 HMI display series with the new GT14 control unit, setting new performance standards in the mid-range segment of touchscreen control units. The GT14 measures 5,7 It is available with either a black and white or color display with a resolution of 320 inches.×240 Pixels. The features and functions of the new models increase the flexibility and performance of the connected control system. The TFT colour display offers 65.536 colors and thus offers, compared to traditional versions of 256 Colours in this range re prices, A particularly clear image with good contrast. For the black-and-white variant, an STN display with 16 Grayscales. Both variants are equipped with a whole host of interesting features, such as long-lasting LED backlighting, Analog Touch Functions, USB port on the front, SD memory card slot, front with protection class IP67f, and Ethernet port.

The GT14 stands out above all for its highly developed communication possibilities: RS232/RS422/485 and Ethernet interfaces are present as standard. The Built-in Function “FA Transparent” enables direct interconnection of a connected PC with Mitsubishi Electric industrial automation products, as PLCs, Drives and servo drives.

Transmitting data from operating systems and projects as well as connecting a keyboard or mouse is a breeze thanks to the USB port. In addition to the traditional USB port on the back of the unit, GT14 also offers a USB port on the front. Like this, Data transmission is even easier, since it is not necessary to open the computer itself. The front USB port is protected by an IP67f compliant cover. With the SD card slot, it is possible to use standard SD cards for data logging, data backup and restore functions for PLC programs and parameters.

The GT14 can be used to record data from remote devices, such as PLCs and temperature regulators. Built-in RAM can store up to 2.000 data points. The data can then be transmitted to an SD card or USB media. In addition, up to two FA products can be controlled and monitored via serial communication or Ethernet. To be able to use several functions simultaneously, The control unit is equipped with a flash memory of 9 MB.

The GT14 is fully compatible with GT Works3 programming software and offers the full range of features, Common Objects and Shapes.
