Eutikes offers CYP's DS-MSC multi-display digital signage controller

Eutikes, company specialized in the commercialization of distribution systems, audio and video conversion and control, has released the controller of digital signage multi-screen DS-MSC of the brand CYP, designed to handle audio and video signals so that a video wall system can be installed when third-party displays are available.

The company Eutikes, distributor in Spain of the brand Cyp, that offers connectivity solutions that improve the capacity of audiovisual products in any installation environment, has added to its portfolio the multi-screen video wall control system DS-MSC, which allows users to display HDMI or PC sources on multiple LCD monitors. This device controls the content of the digital signage of each of the screens that configure the video wall system. They can be controlled up to 25 Screens. a driver is required for each display.

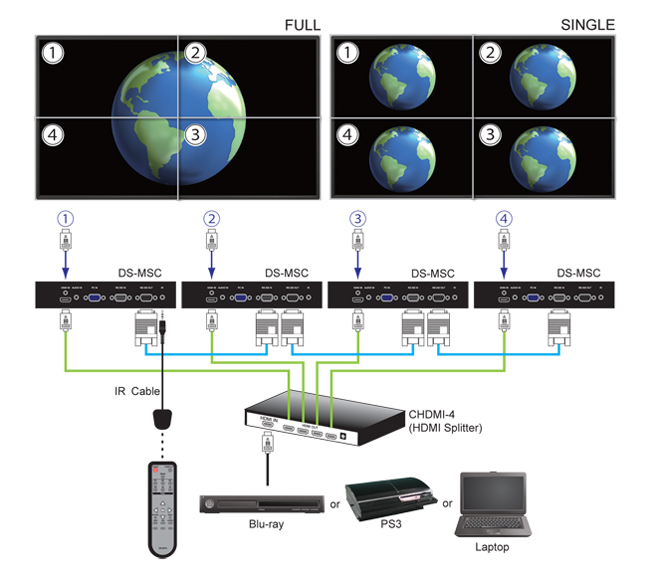

If the user only has an HDMI or VGA source, a distribution amplifier will be required (Splitter) to get the signal from the source to all controllers that feed the screens.

characteristics:
• Supports many combinations of video wall screens: 2×2 (4 Screens), 3×2 (6 Screens), 3×3 (9 Screens), 4×3 (twelve screens), 4×4 (16 Screens) and 5×5 (25 Screens)
• Supports HDMI and PC input sources (with audio)
• Supports Full 1080p input resolutions
• RS-232 control with RS-232 cables cascading between each video wall controller
• External IR receiver for remote control
• You need a distribution amplifier (Splitter) HDMI or PC (with audio) to distribute the audio/video signal to each connected DS-MSC controller

specs:

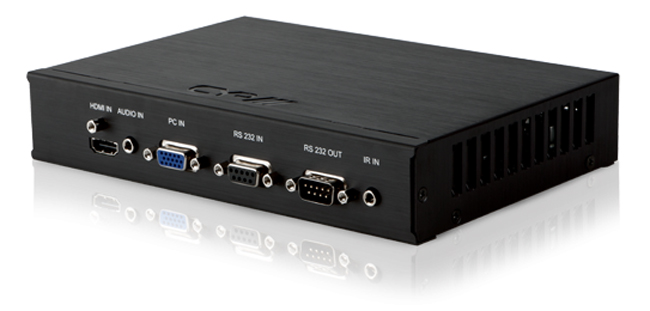

Tickets: 1x HDMI (1HDMI x without compressing AV or data), 1x stereo mini-jack (1analog stereo x (L/R)), 1x Dsub 15pin (1RGBHV x), 1x Dsub 9pin (1x RS-232 data), 1x stereo mini-jack (1x infrared receiver)
Outputs: 1x HDMI (1HDMI x without compressing AV or data), 2x RCA (1analog stereo x (L/R)), 1x Dsub 9pin (1x RS-232 data)
feeding: 5V/3A, DC (US/EU standards, CE/FCC/UL certificate)
dimensions: 250Mm (wide), 150Mm (deep), 50Mm (high)
gross weight: 880G
net weight: 740G
