Infaimon offers 3DExpress software for 3D computer vision easily and easily

The distributor of computer vision and image analysis systems and components, Infamy, has incorporated into its product catalog the 3DExpress of AQSENSE, a 3D preprocessing software for the uses of computer vision including graphic help for the configuration and elimination of errors of 3D acquisition systems.

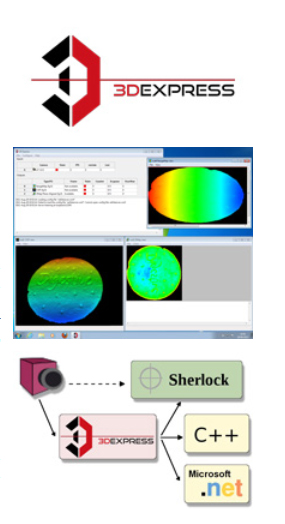

Infamy has announced the 3DExpress of AQSENSE, 3D pre-processing software for machine vision applications, including graphical assistance for configuration and debugging of 3D acquisition systems. Located between the acquisition device and the processing tool, 3DExpress provides a system with open source graphical interface to acquire data from any source (2D and 3D camera…), get your 3D representation, manipulating point clouds and, last, export the result so that it can be processed by standard 2D tools, based on graphical interfaces or libraries.

Thanks to the simplicity of the step-by-step menus, 3DExpress avoids the typical difficulties of 3D and offers a quick and easy tool to solve most 3D computer vision applications, such as:

– Generate a point cloud (Cop)

– Adjust a drawing to a desired ROI

– Rotate a point cloud to get the desired view

– Generate a 2D representation that contains 3D information (Zmap)

Easy and simple but with powerful SAL3D engine

All the technology and know-how of SAL3D has been added to this tool becoming a part of its core. The reliability and proven performance of SAL3D tools can now be used in an easy and friendly environment.

Support for various inputs & outputs

3DExpress comes with standard support for a wide range of cameras and frame grabbers with 2D and 3D working modes:

– Photonfocus cameras

– Ids

– Dalsa

– Silicon Software

Once 3D acquisition and manipulation have been performed, The 3DExpress allows multiple outputs to be easily used by standard 2D processing tools, such as Sherlock or programming languages such as C++ or .NET (soon), so that final measurements can be made easily.

Real-time control at all stages

With viewers included, each input and intermediate step can be controlled 100% live, while the system is working. It is possible to update the configuration of the 3DExpress and change the output without stopping the process and see the results in the next steps of the process without any reconfiguration.
