CeIncom's new range of TCP/IP and fiber optic converters allow maximum performance to be obtained from high-definition video and digital signage installations.

Ceincom DVI convertersConverters and Communications Interfaces (CeIncom) has available a full range of converters for fiber optics and TCP/IP, covering DVI formats, HDMI and 3G-SDI, allow you to extend peer-to-peer video signals, point to multipoint and multipoint to multipoint, for maximum performance from high-definition video and digital signage installations.

In some applications, as from SDI to TCP/IP, where the signal is converted to TCP/IP Gigabit, it is possible to cover distances of up to 120 kilometers with a single Gigabit Ethernet to fiber optic converter.

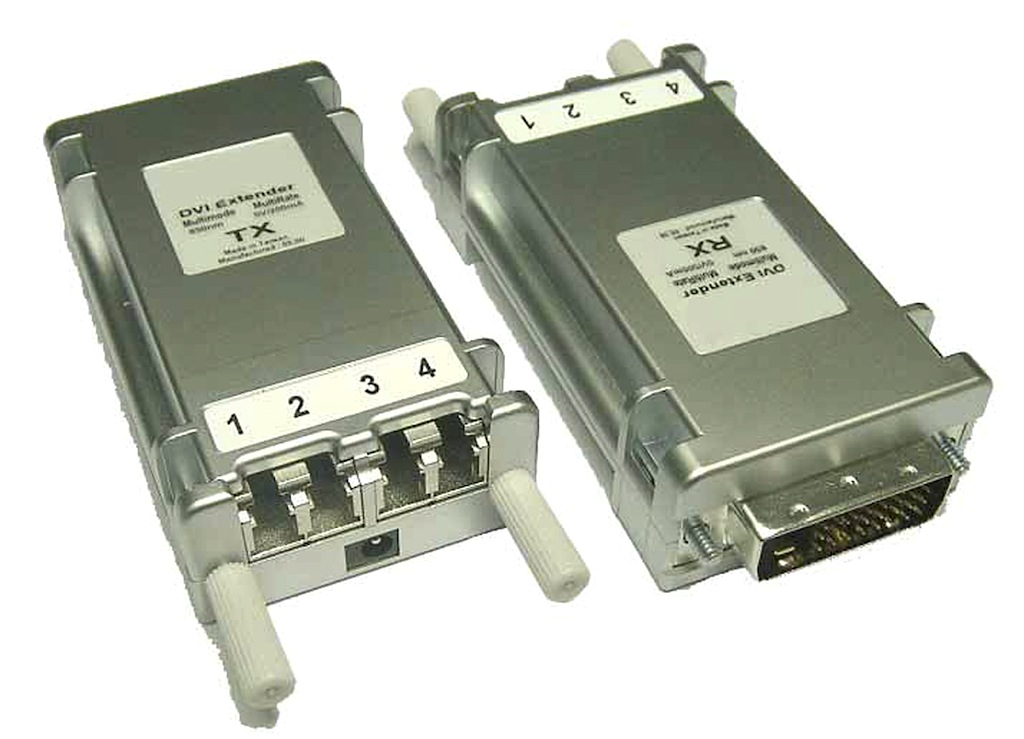

The product range consists of DVI500-1SC-01 (TX+RX), a DVI extender that provides links of up to five hundred meters using a single multimode optical fiber (850 nm – 50/125) with SC connector between a TX computer and a display or receiver.

The DVI05K-2LCSS-XX converter (TX+RX) provides a link between the TX equipment and the screen of up to five hundred meters, using a single-mode or multi-mode duplex cable with LC connector. The DVI500-4LC-01 (TX+RX) creates a link of up to five hundred meters (depending on resolution and fiber type) through four multimode optical fibers (850 nm) with LC connector to link a TX and up to eight displays (using optical couplers in fixed installations).

DVI05K-4LCSS-T-01 (TX) achieves a link of up to five kilometers (maximum resolution of 1,920×1.200) using four single-mode optical fibers (1.310 nm) with LC connector to be able to join a TX and up to eight digital monitors. With the same characteristics, DVI05K-4LCSL-T-01 allows you to connect up to 32 Screens (with optical couplers in fixed installations), while DVI05K-4LCSS-R converter-01 (RX) change tx link to RX,

Compatible with HDMI standard 1.3, the HDMI200-2SC model-01 (RX+TX) extends digital HDTV data with HDCP to a distance of up to two hundred meters via multimode fiber.

In the 3D-SDI area, the SDI system-020K-1ST-01 (RX+TX) extends audio and video signals to 20 kilometers away by single-mode fiber. To this is added the HDMI over IP transmitter/receiver (model HDP-150T/R), especially suitable in traffic control systems and emergency centers.
