Bosch Security Systems integrates intelligent tracking technology into its new Autodome cameras 7000

The German manufacturer Bosch Security Systems has presented its new range of cameras Autodome 7000 pan-tilt-zoom (PTZ) with intelligent video surveillance tracking features.

Autodome 7000 is the new range of PTZ video surveillance cameras Bosch Security Systems, that offers customers a powerful automated monitoring system that ensures control of security risks.

One of the novelties of Autodome 7000 is that integrates intelligent video analysis software (VAT) of Bosch, automatically processes video signals and alerts operators to security risks and early threat detection.

In this sense, Single camera Autodome PTZ 7000 Can analyze up to ten different scenes about loitering, Line crossing and other criteria, In addition to being customized to address the specific needs of each client.

Bosch Security's exclusive intelligent tracking technology uses advanced flow detection algorithms to control motion scenes and automatically track objects. Customers can define conditions that instantly trigger tracking, for example, a vehicle moving through an area in a specific direction.

In addition, Security operators can also trigger tracking by tapping on a moving target in a direct video to have the camera hold it in the image.. Dynamically, This range of cameras automatically makes zoom adjustments to capture the most useful images of objects of interest as they move through the camera's field of view and in detail..

The Autodome range 7000 Sets a new benchmark for intelligent tracking algorithms, because it resumes its tracking of a target after it passes behind a privacy mask or if it is temporarily hidden by a fixed object, even when trees are swaying or when there is other background noise. The camera continuously follows the lens when it reappears or when motion is detected along the path, ensuring activities are always captured.

High performance and image quality

Bosch Security has also improved in this range the sharpness of the image, with more accurate color reproduction and more detail in low-light images. Standard definition IP camera offers 28x or 36x zoom, while the HD camera offers a resolution of 1,080p, to 30 images per second (Ips) and 20x zoom, In addition to supporting high resolution speed of 720p to 60 IPS to capture the finest details of fast-moving objects in traffic and surveillance in the city, in casinos and leisure centers, at toll or service stations, Large leisure areas, Etc.

Designed using the latest version of Bosch CPP4 firmware, These cameras offer quad streaming for live tracking and recording, with a maximum of four streams that are configured independently. Although customers can log and monitor in HD resolution, Cameras can also offer reduced resolutions for remote viewing in smaller bandwidth.

Autodome cameras 7000 They also offer limit recording in combination with central storage for reliable performance. With up to 2 TB of storage via SDXC or 32 GB with SDHC, Cards can be used for short-term or local alarm recording.

Easy installation and use

Designed for easy installation and use, This new range incorporates five pre-configured settings to capture optimal image quality in the most common applications and 256 Preset positions for viewing critical control areas at the touch of a button.

Autodome 7000 are pre-installed, The wiring is color-coded and has a quick connection system between the camera and the mount, so that its installation is simpler and faster than that of other PTZ dome cameras. In addition, A fiber optic kit includes a media converter module that is installed directly in the power box.

Standard and high-definition Bosch IP cameras, encoders and analysis systems work seamlessly with a wide range of security software and recording solutions from Bosch and other video management system suppliers, as they are Onvif compliant and the Integration Partner Program(IPP), gives developers immediate access to software development tools to easily integrate Bosch products with third-party systems.

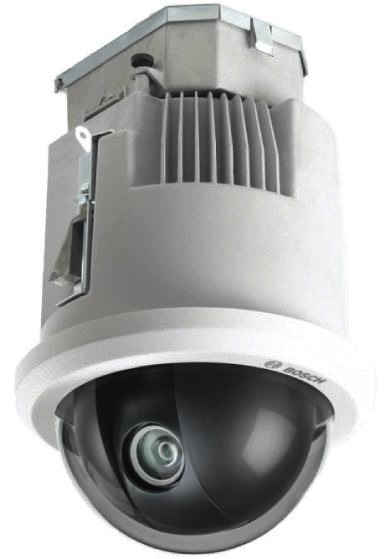

The Autodome range 7000 Includes indoor and outdoor dome cameras (replacing Autodome models 800 and 700 IP, incorporating a recessed HD dome option), with a range of resistance to operating temperatures of -40 to 55 degrees Celsius. Its aluminum housing is tamper-proof and IP66 and Nema 4X rated for reliable functionality, even in dusty or humid environments.

In addition, the design of the power supply of Autodome cameras 7000 supports the simultaneous use of 24 AC and high voltage over Ethernet (HPoE) for continuous coverage. If a power supply fails, the other takes over operation without having to go through a restart cycle.
