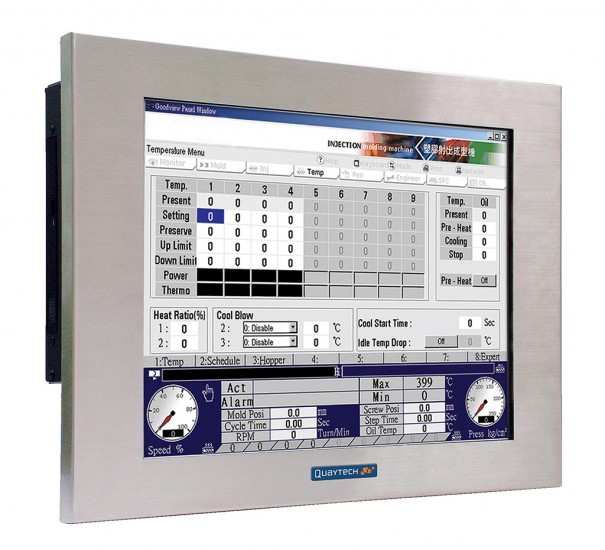

Quaytech panelable PCs with Elo AccuTouch touch screens

Fanless designed with touch screen 15, 17 or 19 intel D2550 a inch and processor 1,86 Ghz, Quaytech panelable PCs are ideal to adapt to any environment.

Quaytech, whose products it distributes Macroservice, has developed a new line of panelable PCs designed with AccuTouch touch screens from Elo Touch Solutions, that incorporate resistive technology of 5 Threads.

The QYT-792x line is available in versions of 15 (QYT-7925), 17 (QYT-7927) and 19 Inch (QYT-7929). These touch screens are characterized by offering an XGA resolution (QYT-7925) and SXGA BLU by LED with brightness of 300, 350 and 400 cd/m2.

These Quaytech computers incorporate the Intel D2550 processor to 1,86 GHz and Intel NM10 chipset with system memory 4 GB (DDR III SO-DIMM slot). They are fanless designed to offer quiet operation and a stainless steel front frame with IP65 protection that allows them to adapt to the needs of any environment.

These modular designs include two external PCI expansion slots (Optional), six USB ports 2.0, four RS232 serial ports (COM1, 2, 3 and 4 selectable from +5 V / +12 V and COM2 selectable RS422 / RS485), two LAN ports (10/100/1000 mbps) Wake on LAN, Analog VGA output and PS/2 port, four digital inputs and four outputs (5 and 12 V), and bidirectional parallel port.

The QYT-792x Series, RoHS compliant, it is also characterized to have a SATA SSD hard drive of 120 GB, selectable watchdog and DVD Slim (optional), VESA rear anchorage of 75/100 mm and internal ATX power (consumption of 130 W).
