Eyevis Slim-Cubes: rear projection panel for wall mounting of small control rooms

with 422 mm depth, a diagonal of 50" and Full HD resolution, eyevis Slim-Cubes is easy to install and maintain in small control rooms and TV studios. A piece of equipment that can be seen at the manufacturer's stand at ISE.

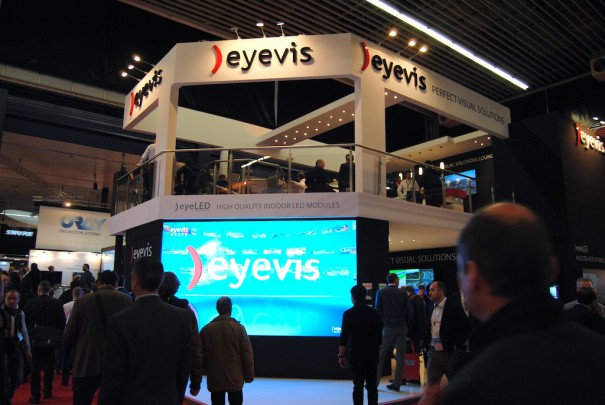

The new Slim-Cubes is being presented at the stand (2C66) of eyevis at the fair Ise which is being held in Amsterdam.

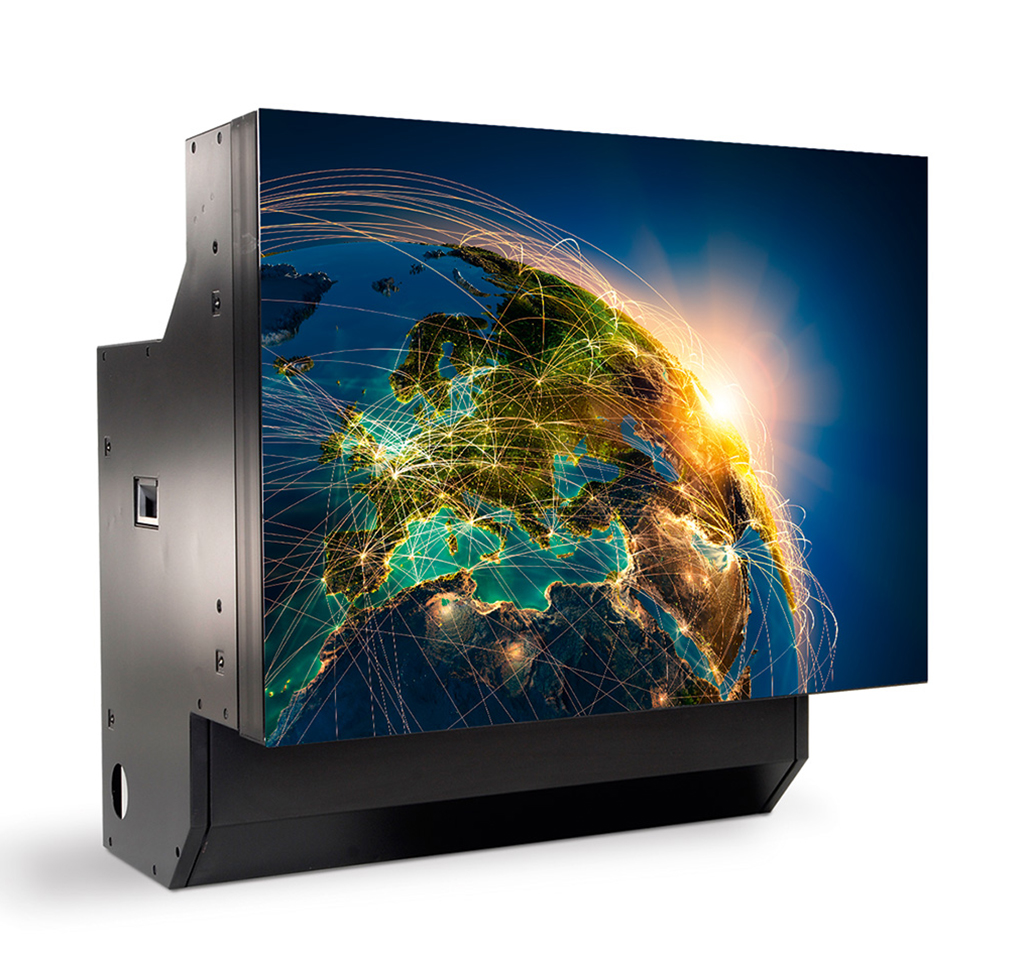

With their 422 mm depth, their 50 diagonal inches and Full HD resolution, Eyevis' Slim-Cubes is thin enough to be mounted directly on the wall of small control rooms or TV studios. It offers access from the front and does not require space to be left between the wall and the display to facilitate ventilation or allow access for maintenance services.

Easy-to-use concept speeds up installation and reduces downtime during maintenance. The projection units can be easily replaced by a replacement unit and the panel will be immediately active again..

Its single-module design and front access make it ideal for building a video wall and allows you to insert, after installation, the projection units in the housing. They can be connected from the front or back and adjusted via software. All electrical components, optical and electronic, as well as the cooling system are integrated into the unit.

On the other hand, the space between adjacent screens is extremely tight thanks to eyevis' discrete screen clamping technology.

Technical specifications

• Screen diagonal: 50 Inch
• Measurement: 1107 X 1060 X 422
• resolution: Full HD (1.920 × 1.080)
• Aspect ratio: 16:9
• brightness: 370 cd/m2
