dbx's new DriveRack Venu360 speaker processor fits from an iOS compatible device, Android, Windows or Mac via an app and standard router connected to the Ethernet port on the rear panel.

dbx DriveRack VENU360

The Driverack Venu360 speaker processor from dbx, whose products it distributes Earpro, Allows installers and rental companies to optimize the quality of their sound systems. This is the successor to the Driverack model 260 and includes a number of additional features, including control from mobile devices, More Input Channels, Improved DSP and easier handling.

“The Driverack Venu360 offers a level of speaker tuning that goes far beyond what existed on the market until now, Offering a better-sounding sound system, with the great advantage of having total control from a laptop, A tablet or even a smartphone”, comments Jason Kunz, market manager Portable PA and Recording & Broadcast of the Harman Group.

The Venu360 Driverack is a configurable and flexible device, which includes the latest advancements of dbx's AFS and AutoEQ algorithms, originally built into the Driverack PA2. Offers expanded input process and includes automatic feedback suppression, that detects couplings and eliminates the frequencies that cause them.

Another important part of the input process is the graphic equalizer of 31 Bands, The parametric of 12 Notch-type banding and filtering functionalities, DBX Compression, Sub-harmonic synthesis for enhanced bass impact, Backline Delay and Noise Gates.

dbx DriveRack VENU360

Multi-crossover configurations are possible for all-range and all-range modes. 2 and 3 Way. In addition, The output process features auto-equalization of 12 Bands (8 auto-equalization bands and 4 User-configurable bands), DBX Compression, automatic gain control, Sub-harmonic synthesis, Noise doors, Delays for Towers (Up to 1000ms per output), Parametric equalizer 8 Bands (for speaker adjustment), DBX Limitation and Transducer Alignment Delays.

Connecting a dbx RTA-M measurement microphone to the RTA mic input allows you to use dbx's proprietary Level Assist and AutoEQ algorithms to automatically equalize the room for a more balanced frequency response. As the AutoEQ is located in the output process module, Independent sections of a system can be automatically equalized, allowing AutoEQ to be used in the PA system, as well as monitors, Delay Zones and Towers.

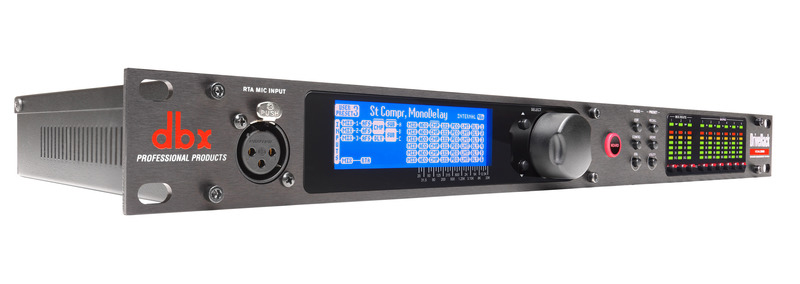

The Venu360 DriveRack can be adjusted and operated from an iOS compatible device, Android, Windows or Mac via an easy-to-use app and a standard router connected to the Ethernet port on the rear panel. It also has an LCD display on the front panel, offering map-like navigation, Input and output meters and mutes for system tuning and monitoring.

The Venu360's Enhanced Adjustment Assistant Includes Stage Monitors in Its List, making the set-up of an all-round sound system easy and accurate.

dbx DriveRack VENU360

Among the assistant's many functions are Level Assist, Auto EQ, Built-in JBL AFS, amplification and speaker settings. likewise, Can be stored up to 75 User Configurations, eliminating the need to enter the same system or room settings over and over again.

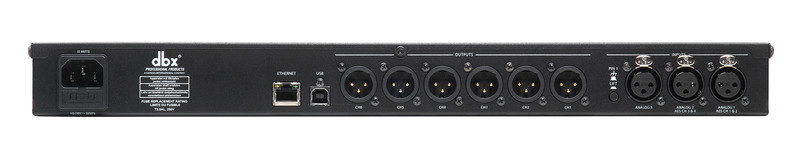

The dbx Venu360 offers balanced analog and digital AES inputs for connecting a mixer, with mono options, stereo, LCR & Subs Configurations with Aux Send. Six balanced XLR outputs can be configured for PA system, Stage Monitors, Delay Towers, Zones & More. likewise, is compatible with Contrio BSS Ethernet Wall Controllers and firmware updates can be carried out via USB port.
