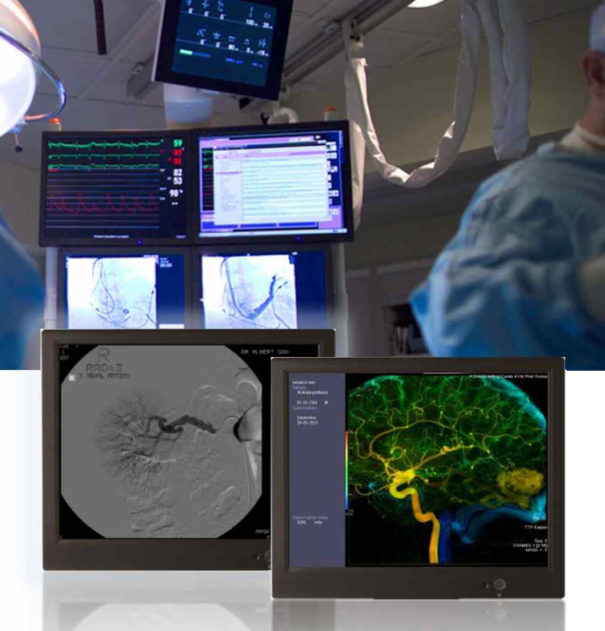

Alpha Display APM-190: monitors 19 inches for medical imaging applications

Available in monochrome version (MX) and color (CX), these equipments present a TFT LCD screen with led backlight and IPS panel that offers a resolution of 1.280×1.024, a brightness of 600 cd/m² color and 1300 cd/m² for monochrome and a contrast ratio of 1.000:1 or 2.000:1.

The APM-190 series monitors Alpha Display, company represented in Spain, Portugal and Chile by Anatronic, have been designed to respond to the requirements of medical imaging applications, as an image intensifier, digital subtraction angiography (DSA) and computed tomography angiography (CTA).

Available in monochrome and color versions, these equipments have been integrated into an LCD TFT with backlight by Led. Your screen 19 inches offers a resolution of 1,280×1.024 with a brightness of 600 cd/m² color and 1300 cd/m² for monochrome. Its contrast ratio is 1.000:1 or 2.000:1 with a color depth of 8 bit (16,7 millions of colors), an aspect of 5:4 and 178° viewing angles, consequence of the use of IPS technology.

Monochrome models (MX) and color (CX) they are also distinguished by having an AD controller card that provides versatility through various possibilities of analog and digital connectivity, including HDMI, DVI-D, RGB and CVBS video, in addition to providing compatibility with the Dicom LUT standard of 12 bit (4.095 grayscale tones).

The new monitors with led backlight sensor are supplied with a level of brightness calibrated in the production plant, depending on specific application needs, ensuring that they provide a level of JND image performance (barely perfectible difference), even with the passage of time.

The main features are completed with multiphase Dicom/Gamma switching function, supply voltage of 12 VDC and operating temperature up to +50 C.

These models with black cover are compatible with the Vesa 100 mounting standard×100 mm and offer the option of having a tilt bracket.
