Avalue develops an HDBaseT solution for digital signage and education

The combination of the IPM-1501B touch monitor and the IP-TBOXB extender meet the needs of digital signage applications, corporate image, receptions and entrance areas, educational campuses, Industrial PCs and multimedia displays.

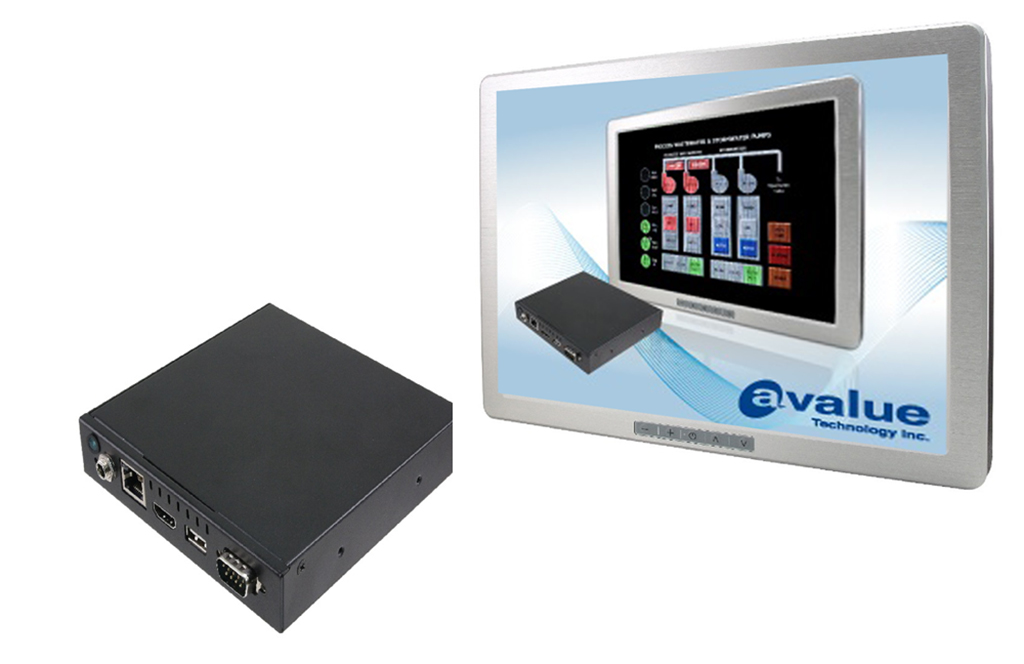

Avalue Technology, company represented in Spain, Portugal and Chile by Anatronic, has an HDBaseT solution, composed of IPM-1501B touch monitor and compact extender with Tx IP-TBOXB module.

The combination of both tools meets the needs of various markets such as digital signage, corporate image, receptions and entrance areas, educational campuses, Industrial PCs (CPI) and multimedia displays.

HDBaseT is a connectivity technology that is ideal for long-distance transmission applications, as it happens in sending the signal through Ethernet cable (CAT5e/CAT6) From extender to monitor. Ethernet cable combines PoE, HDMI, audio and USB signal and supplies power up to 60 W at a distance of up to 100 metre.

The IPM-1501B is an HDBaseT touch monitor from 15 inches with resistive screen of 5 Threads, format 4:3 and XGA resolution (1024×768). This fanless TFT design features HDMI+USB over HDBaseT, two USB, one line output and one RS-232, Wide power input range (between 12 and 26 Vdc), PoE of 60 W, Daisy Chain function and VESA mounting and DIN rail support.

The IP-TBOXB is a compact extender that supports HDMI+USB over HDBaseT (CAT5e/CAT6 cable up to a distance of up to 100 metre), Power input range of 12 to 26 VDC and PoE of 60 W. This wall-mount extender also works fan-free.
