A new nightclub in Los Angeles opens its doors marked by Latin airs and a spectacular AV infrastructure

In your installation, Rumba Room has used 486 lighting devices with Moving Heads Led Type Spot and Wash, effects such as Sniper 2R, 378 units of the compact Pair with 1 RGBW LED 18 watts and a 7° aperture beam Elar Q1. It also features 44 EZ4 panels for screens located on the dance floor and in other areas of the room.

A few months ago the Rumba Room nightclub in Anaheim opened its doors, in the metropolitan area of the city of Los Angeles (California). A local, which has an area of one thousand square meters and capacity for a thousand people, and which has been equipped with a complete audiovisual equipment. This project has been carried out by the company Props AV who has been in charge of the design and the subsequent installation and programming of all the lighting and video of the room.

"The idea of the owners of this enclosure was from the first moment to provide the room with Latin touches, and that somehow reminded of the famous casinos of Las Vegas. This type of decoration has been a novelty in the nightlife scene of the city of Anaheim. In all corners of the disco and outside the lighting has been taken care of with the numerous devices installed Elation Professional", explains Michael Betancourt, managing director of Props AV.

The exterior façade of access to the Rumba Room nightclub has been illuminated with 12 SixPar 200IP, Led pair with IP65 construction for use under all types of weather conditions, and with 12 Led RGB+white+ amber+ultraviolet 12 watts for a total of 144 watts of power per appliance.

"We were looking for eye-catching exterior lighting that could project a varied color palette and the SixPar 200IP have provided us with what we wanted", comments Ramon Chávez, responsible for operations of the discotheque.

At the entrance, the lobby has been illuminated with 7 Eled QA Strip bars, with Flex Led RGB Tape strips providing decorative lighting for the locker and cloakroom area. Both exterior and lobby lighting are controlled by the Art500 intuitive touch DMX controller, that allows you to save different schedules and sequences with color changes.

Below is an area with a video screen composed of 12 Led panels EZ4 from Elation Professional, whose brand distributes Visuals, in a configuration of 4 meters wide by 3 high. This panel, of 4 millimeters of pixel density, 1.200 nits of luminosity and a size of 50×50 cm, It is ideal for all types of fixed installations and to show visual content such as videos and graphics in high resolution and great sharpness and luminosity.

The two areas with the bars of the disco have a decorative lighting with numerous meters of Flex Led RGB Tape, that with their color changes provide these spaces with different environments. This Elation strip is also used in the numerous VIP reservations that this nightclub has., illuminating both the floor and ceiling.

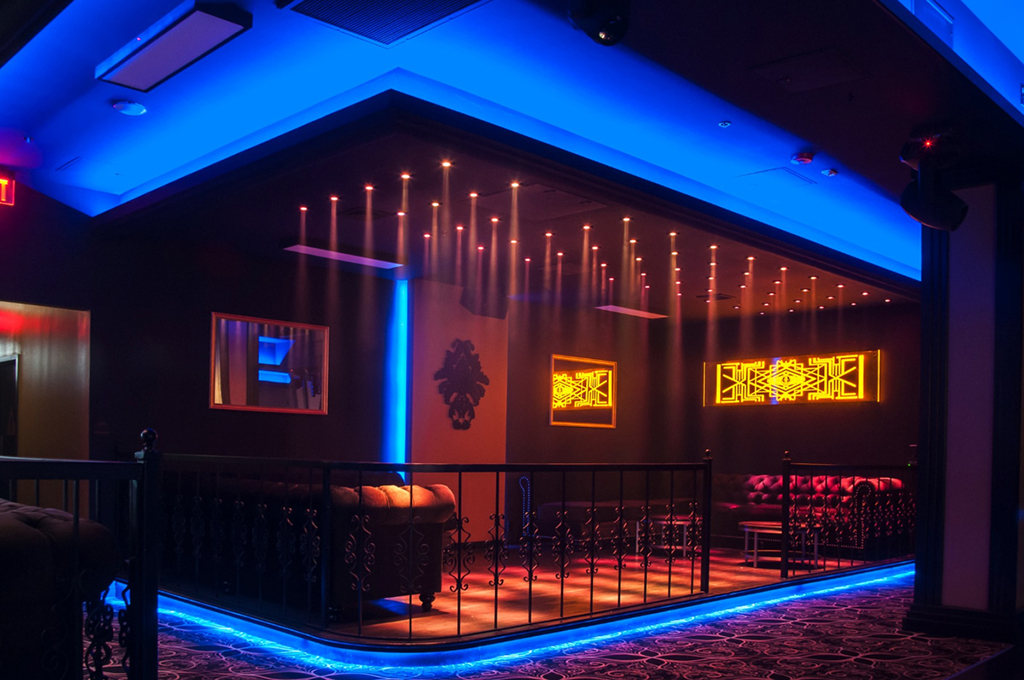

A total of 378 Elation Elar Q1 units have been used, at the rate of more than 50 units per reserved, to provide spectacular overhead lighting and with a very defined beam in these VIP lounges.

With its RGBW Leds of 18 Watts, a beam of 7° aperture and projecting pixel-mapping content launched from an Arkaos Media Master server, a spectacular result is achieved. "The VIP areas are the spaces that attract the most attention as soon as you enter the disco. With more than 50 Elar Q1 installed in each VIP reservation, the effect achieved is very shocking", comments Michael Betancourt.

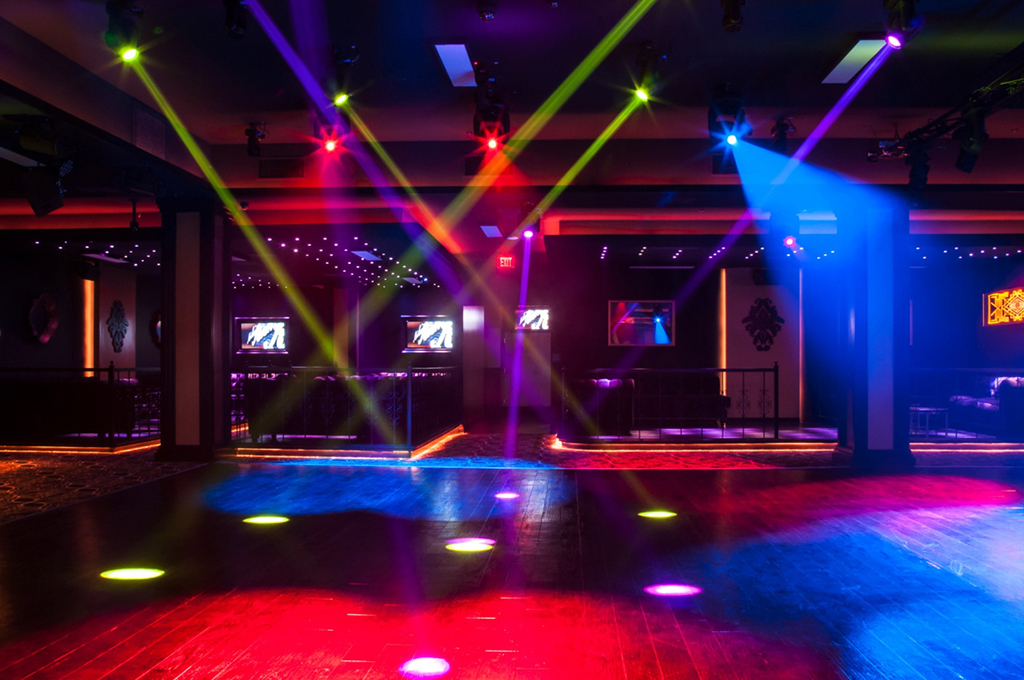

The dance floor area at the Rumba Room nightclub includes 3 Led video screens, with a total of 32 EZ4 panels, spread across a main screen, with configuration of 7×4, and two auxiliary side screens, each of them in configuration of 1×2.

In the structure of truss, positioned above the dance floor, have been installed 10 Spot moving heads with Zoom Platinum Spot Led Pro II, 8 Beam Rayzor Q7 type and 8 fast and compact Beam Rayzor Beam 2R type, with Philips Platinum 2R lamp 132 Watts.

likewise, on the dance floor have been installed 4 Beam effect units, Sniper 2R Laser Scanner and Simulator, plus a couple of units of the SixPar Led Pair 200, with Flex Led RGB Tape strip that accentuates the contours of the disc jockey's cabin.

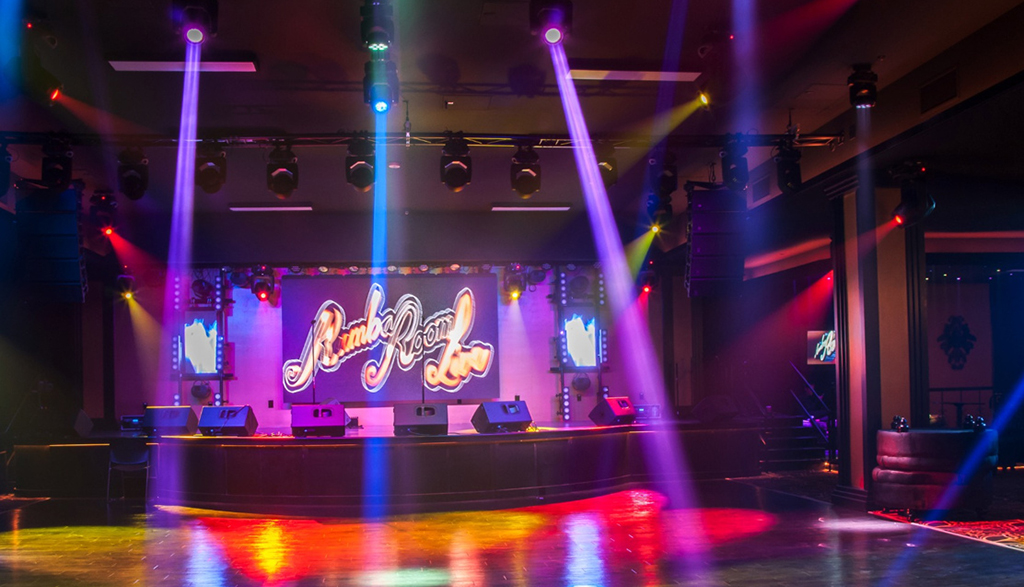

Rumba Room also offers concerts of varied musical styles and has a stage that is illuminated with 12 Led Moving Heads Type Beam/Wash with Zoom Rayzor Q12 Zoom, alongside 15 SixPar units 100, providing rear lighting, and 6 Platinum Spot Led Pro II moving heads, that add projections of gobos and effects with their prism of 3 Sides.

This area of the disco also has 12 High brightness Led bars Cuepix Strip TRI, each with 5 Led COB RGB of 30 watts for a total of 150 Watts, individual control over each pixel and 55 centimeters in length, and others 8 Sniper 2R units that project spectacular Beam effects, Scanner and Laser simulator on stage and dance floor with its 3° aperture beam, 14 dichroic colors, 17 gobos and prism of 3 Sides.

Elation Professional Equipment:

• 20 Platinum Spot Led Pro II.
• 12 Rayzor Q12 Zoom, 8 Rayzor Q7 and 8 Rayzor Beam 2R.
• 12 Sniper 2R.
• 12 SixPar 200IP, 2 SixPar 200 and 15 SixPar 100.
• 12 Cuepix Strip TRI.
• 7 Eled QA Strip.
• 378 Elar Q1.
• 300 meters of Flex Led RGB Tape.
• 1 Art500.
• 44 Led video panels EZ4.
• 2 E-Node 8 pro.
• 3 Opto Branch 8.
