Quanmax QDSP-7000: media player for 4K content in digital signage applications

This line of players integrates an Intel ULT Skylake / Kaby Lake processor with Intel HD Graphics GPU 520/620 ultra-low power consumption in a rugged aluminum chassis without ducts or fan.

Quanmax, company represented in Spain, Portugal and Chile by Anatronic, ha dado a conocer la serie de reproductores QDSP-7000 que incluye los procesadores Intel ULT Skylake/Kaby Lake con GPU Intel HD Graphics 520/620, features that give them the processing and graphics capabilities required by 4K videos.

These players, Fanless, are ideal for digital signage applications and, even, Projects 24×7.

On many occasions, Digital displays are located outdoors. That's why, The presence of sand and dust can become a problem for the system. Dust buildup can clog the fan or reduce heat dissipation efficiency of sensitive components. QDSP-7000 Series integrates ultra-low-power Intel ULT Series processor into a ductless, fanless rugged aluminum chassis.

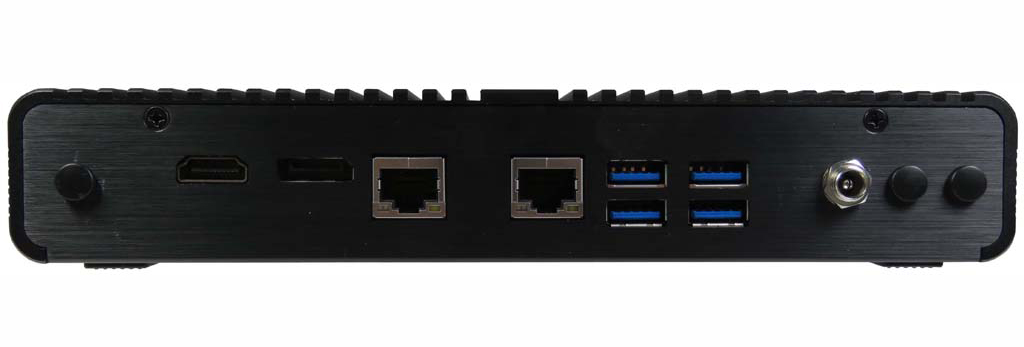

Regarding data transmission, QDSP-7000 series units are equipped with various next-generation interfaces, including two DDR4 SO-DIMM memory sockets (until 32 GB), one HDMI video output port 2.0 and a Sata HDD/SSD slot 3.0 of 2,5 Inch. It also has different peripheral interfaces with four USB 3.0 two RS-232/422/485 for legacy computers and two LANs for wired network connection.

QDSP-7000 series players reserve space for one mPCIe socket and one M.2 Key B socket, which is of great help in expansion tasks by allowing you to add extra SSD memory or other functionalities (WiFi, WiGig, Bluetooth, 3G/4G, NFC, GPS or TV tuner).
