Beyerdynamic TG 500: Wireless system for small stages and presentations

This solution is available in five sets, each containing an individual receiver and two detachable antennas. The TG 550 Vocal Set is ideal for singing, while the TG 556 Vocal Set is designed for presentations, TG 558 Presenter Set for conferences, TG 534 Headworn Set for Theatre and TG 510 Instrument Set for Musical Instruments.

Beyerdynamic has introduced the versatile TG wireless system 500, successor to the Opus series 600 which incorporates more modern features and can be used without a license in almost any part of the world depending on the frequency band selected. An ideal solution for both small scenarios, Theatrical productions, speeches or presentations.

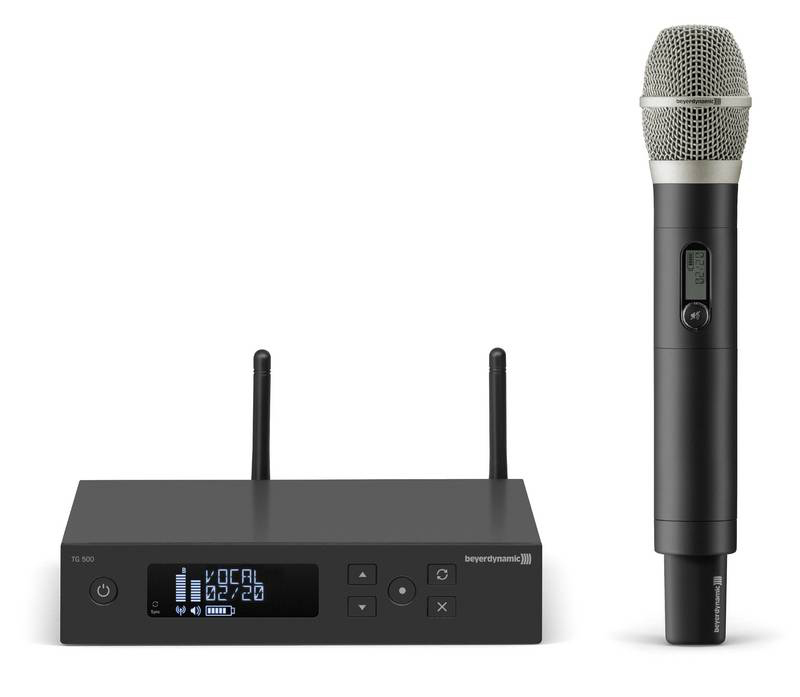

The system is available in five sets, each of which contains an individual receiver and two detachable antennas. The TG 550 Vocal Set is supplied with the TG 500H-D handheld transmitter, with TG V50 capsule (dynamics, cardioid) and is suitable for singing; while the TG 556 Vocal Set comes with the TG 500H-C handheld transmitter with TG V56 capsule (condenser, cardioid), An ideal solution for presentations.

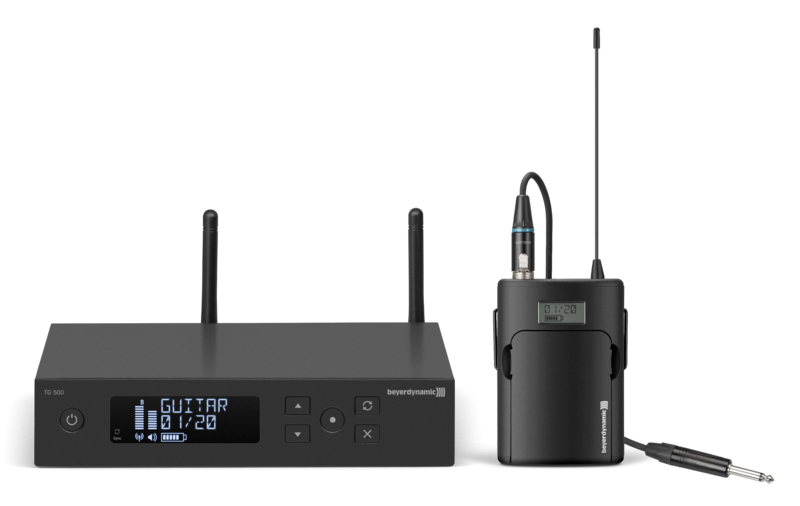

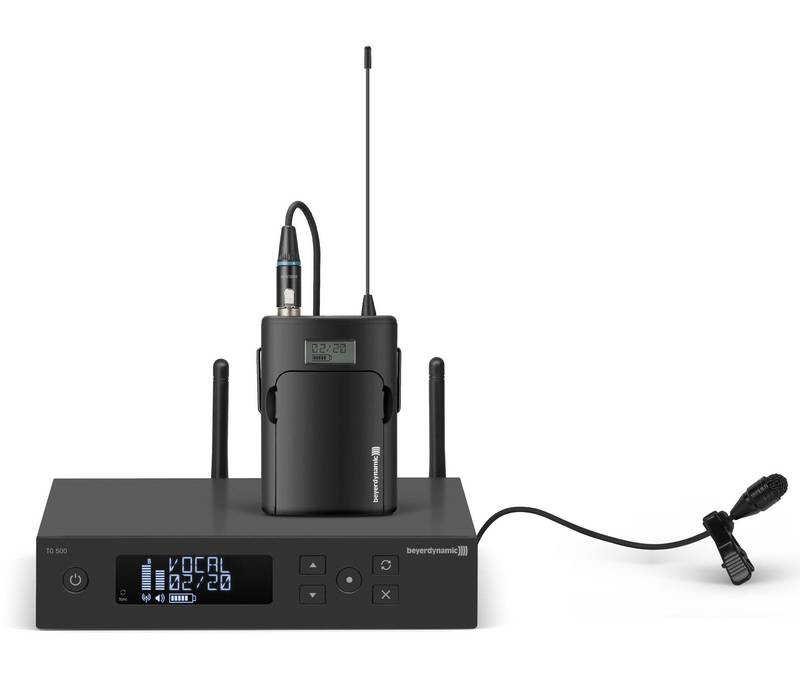

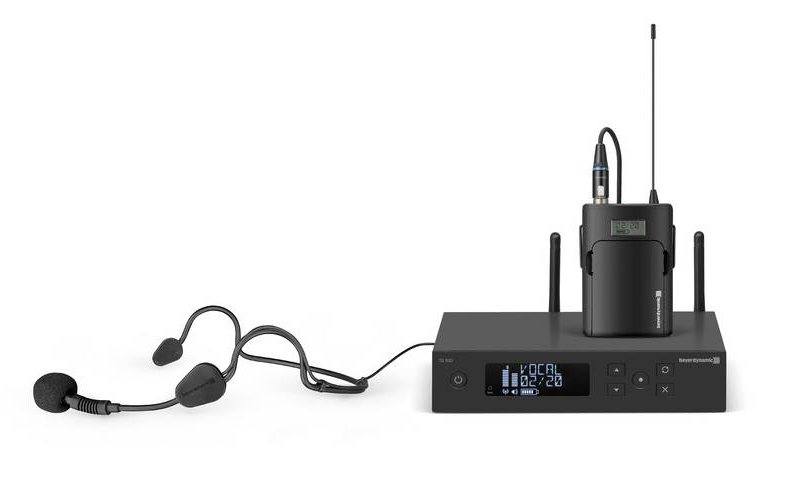

The TG L58 Tie Microphone (condenser, omnidirectional) of the TG 558 Presenter Set can be used in an unnoticed position at conferences, while the TG 534 Headworn Set with a TG H34 headset microphone (condenser, Supercardioid) It is very suitable for theatre. Both electric guitars and basses can be connected using the WA-CGI instrument cable, which is part of the TG 510 Instrument Set.

With a usage distance of up to 120 metre, this solution from Beyerdynamic, that distributes Gaplasa, Provides great freedom of movement. The band of use is up to 40 MHz and when using the four available bands (518–548 MHz, 606–636 MHz, 794–832 MHz and 1,780–1,810 MHz), can operate simultaneously up to 72 canals (18 Supported frequencies per band), making the TG system 500 Also a good solution for large installations. Each of the five TG set options 500 It is available in each of the four frequency bands, So there is in total 20 Different sets to choose from.

Receptors

At the heart of every Beyerdynamic TG set 500 There is a receiver that has an attractive design with a very robust metal chassis and a very studied front panel.

The combination of intuitive operating elements and a backlit LCD display makes navigation between menus very easy for the user. The frequency response of the system is between 45 Hz and 15 Khz. Balanced XLR and jack audio outputs are available on the rear. Single receiver can be rack-mounted. Supplied rack-mount kit allows for the installation of two individual receivers in a single rack unit.

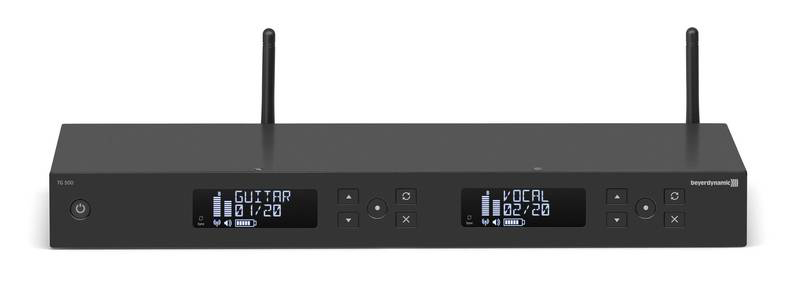

The system also features a dual receiver in a rack unit, with integrated power supply, as well as antenna splitter. Dual receiver provides power for active antenna use. The operation of the antenna diversity ensures optimal reception in all receivers, ensuring that no unwanted cuts occur in the transmission even in adverse conditions. The two audio channels of the dual receiver can be mixed into a single output if preferred, and in that case it is not necessary to use an external mixer.

The system provides a series of pre-configured groups of intermodulation-free frequencies, to ensure proper system operation in multi-channel applications. Frequencies can also be adjusted manually if preferred. Auto scan and search function helps in system tuning. The pilot tone function ensures interference-free transmission and allows us to have information when the battery is running out..

Transmitters

The handheld transmitters of the new TG system 500 provide a perfect grip on the hand, with a pleasant touch. The beltpack transmitter can be attached quickly and easily using the clamping clip. Both the handheld and beltpack transmitters surprise in practice with their light weight. The transmit power can be selected between 10 mW and 50 Mw. Settings are very easy to configure and are passed to transmitters quickly via IR synchronization. All transmitters feature an LCD display, and have a mute button.

Ten hours of battery use ensures uninterrupted use even at very long events. As an alternative to batteries, transmitters can be operated using standard NiMH batteries that can be charged using the optional WA-CD charger, without the need to remove them from the devices.
