D&b GSL: reinforcement speakers for large spaces

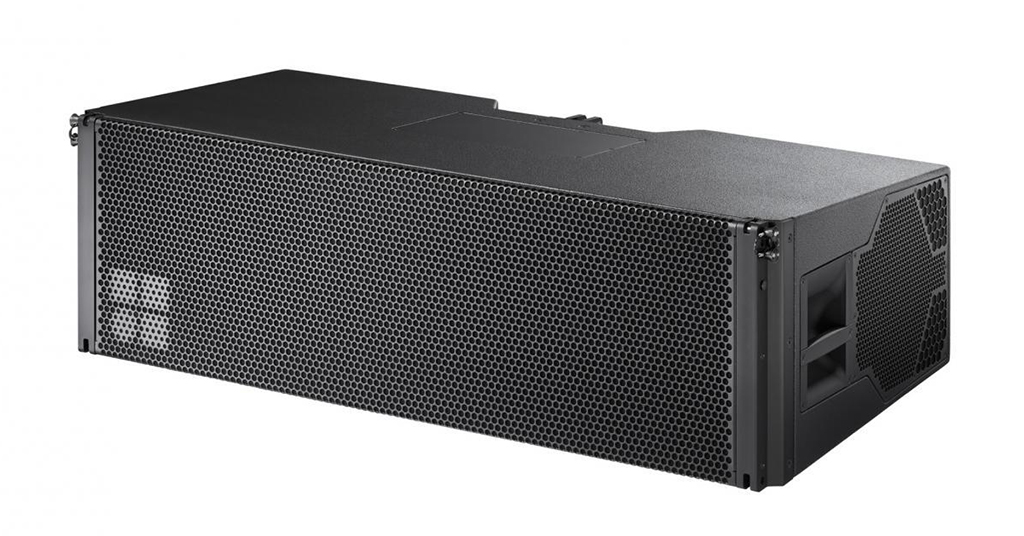

GSL8 and GSL12 speakers, of the D line&b GSL, with a horizontal dispersion of 80 and 120 Degrees, respectively, are unique from other types of large-scale line array modules, because they provide uniform pattern control up to 45 hz.

The GSL system of D&b audiotechnik It is a complete solution created specifically for arena sound reinforcement applications, Large stadiums and festivals. Their goal is to accurately deliver every type of musical genre or style of performance.

GSL8 and GSL12 speakers, with a horizontal dispersion of 80 and 120 Degrees, respectively, are unique from other types of large-scale line array modules, because they provide uniform pattern control up to 45 hz.

The geometry of two motors 14 Inch, Facing Forward, and two of 10 Inch, sideways oriented, Cardioid techniques are combined and applied to create a precise directivity behavior with a significantly extended low frequency dynamic range towards the audience area.

This extension of low frequencies and dynamic range is so effective that, in many applications, Avoids the need to hang subwoofers behind or next to main riggings.

The mid-frequency range is delivered through a highly sensitive horn loaded by a 10" motor, while three innovative HF motors with 3.4" diaphragm, Custom-designed and mounted on a wave-shaping device provide high-frequency resolution and output.

Each speaker is amplified in active two-way mode using the D80 amplifier from d&B: One channel activates 14" motors, and for all other components the frequency is divided and passively activated by a second channel.

The SL-Sub and SL-GSub complement the bass with two forward-facing 21" drivers and a single rear-facing 21" driver that delivers cardioid dispersion.

The former can be hung while the latter is designed for above-ground stacking applications. Amplified in active two-way mode from two channels of the D80 amplifier, its SPL and dynamic range reduce the number of subwoofers normally needed.

"The GSL system is the result of finding solutions to many challenges. concretely, creating precise directivity performance straight down to the lowest frequencies and delivering that power from a speaker with a weight of only 80 Kilos, while maintaining the most important aspects of architecture. With GSL, We've delivered all of this and more, But it's still comfortable and familiar to all those accustomed to using the D workflow&b Workflow", explains Matthias Christner, Head of Acoustics R+D at d&B.

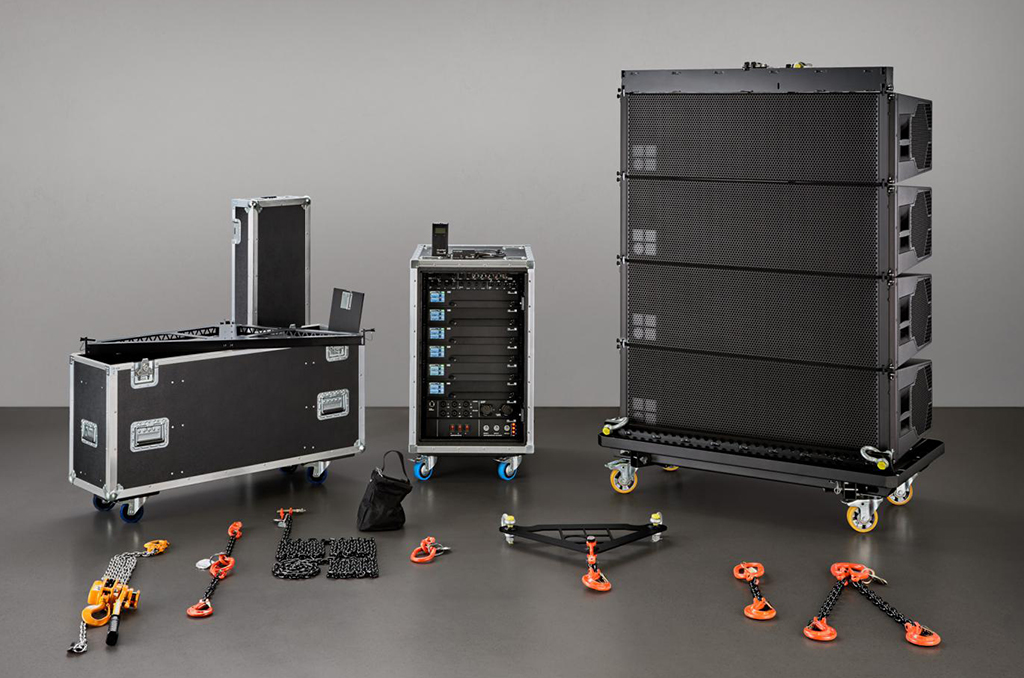

SL Series

To complete this exhaustive set, which was presented at the last edition of Prolight+Sound 2018, The SL Series includes a proprietary combination of tension and compression modes and procedures for three-point rigging of d&B.

Compression mode allows a straight-line array to be hung from the transport trolleys and, with a lift or a manual winch, The arrangement curves with defined degrees of angulation between boxes. Transport carts are designed to fit in standard truck and shipping container sizes, and can carry four GSL8 or GSL12 speakers or three SL subwoofers.

Touring's rack assembly housing six D80 amps also contains a DS10 audio network bridge, the MC24 multicore system and provides power over Ethernet (Poe) for inclinometer d&b ArraySight. In addition, uses the OCA/AES70 protocol to send temperature and humidity information to the R1 remote control software.
