Chief CMA348: mounting projectors for large spaces vibration insulation

This projector coupler for large installations reduces image movement caused by common vibrations of buildings.

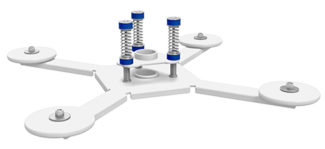

As part of Chief's CMA series of mounting systems, belonging to Legrand AV, the vibration insulating coupler for large installations CMA348, reduces image movement caused by common building vibrations, such as air conditioning, pedestrian and road traffic, as well as the closing of doors, among others (watch attached video).

This patented design, available in black or white finishes, works for systems between 15,87 and 45,37 Kg and connects two Chief CMS columns (1,5" NPT) to isolate vibration in the lower column.

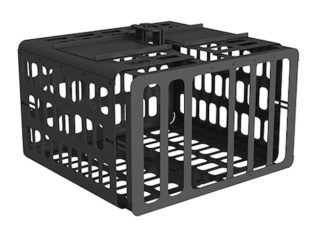

In addition, features the PG4A large projector protector, which completely encloses this equipment in a closed steel cage to prevent damage and theft. The accessory can be added to pre-existing installations without affecting the projector configuration.

Front opening makes it easy to mount different lenses, while the front and rear telescopic panels provide a depth range of 22-27 Inch (559 – 685 Mm) for a better fit. The doors are removable for easy access and, optionally, it also has padlocks for additional security.

Wall mounts for digital signage

On the other hand, the company has also presented the Supports or Impact Wall Cabinets for digital signage, that support different screen sizes, as they have a depth-adjustable outer frame, plus reversible hinges for easy installation and maintenance, so that the screen remains mounted on the frame when opened.

Available in black and white, This cabinet for the installation of digital signage screens has a wall protrusion of 101 mm when used with flat panels (with a depth of less than 70 Mm).

In addition, the company has expanded its modular mounting series for Led screens -TiLed-, to design creative configurations with Led panels from manufacturers such as Samsung, Absen and Unilumin, that can connect with each other to mount large and impressive videowalls, with an integrated plumb line adjustment of 25 Mm (equivalent to one inch), to eliminate as much as possible the unevenness in the wall.
