Riedel bets on ISE 2019 with innovation in real-time signal distribution and transmission

The multinational participates one more edition in this contest to show its latest network solutions for transmission, distribution and live performance, along with the Bolero Standalone update, among other new features.

The product line Riedel Communications will present during their participation in Ise 2019, "reflects the company's continued support for standards and interoperability, the development and expansion of solutions based on software applications and the innovative concept of decentralized signal routing", as they point out from the company.

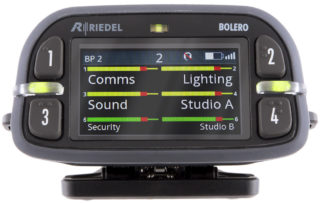

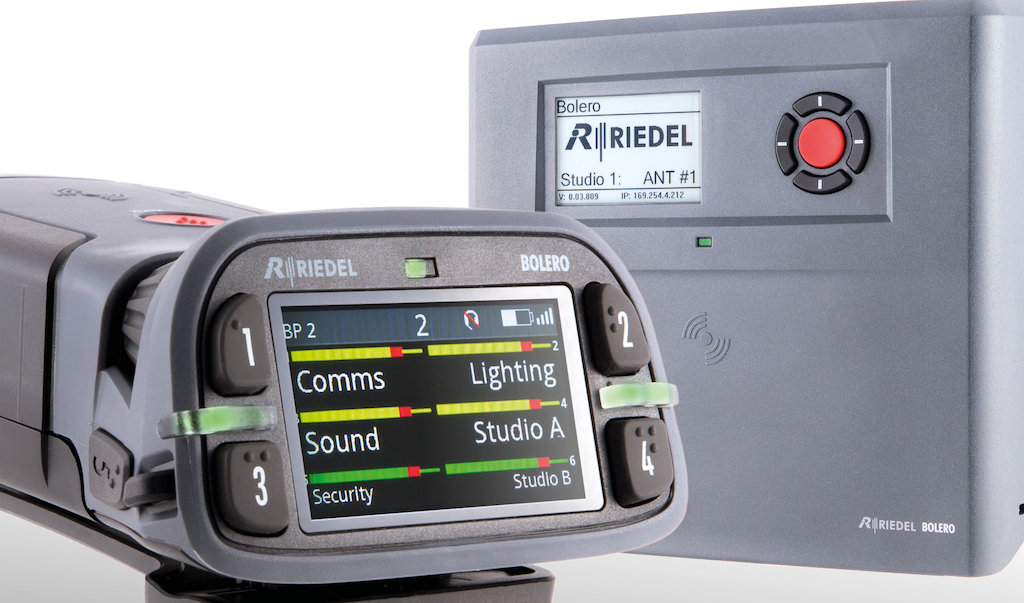

specifically, in your space at the RAI in Amsterdam (hall 6 – stand K140), Riedel will show in detail its new Bolero Standalone app; a licensed update for your well-known wireless intercom system of the same name that offers several performance improvements, along with independent capabilities.

With Bolero's standalone app, antennas chain to each other on a line, or in a redundant ring, over a low-latency synchronized TDM network. Bolero doesn't need IP configuration, as it's really plug-and-play.

A new external power supply can cover up to five antennas, so power and data redundancies are easy to achieve. A single-unit external interface box, with six four-wire analog cables and three GPIOs, can be connected directly to any antenna and then to an existing intercom system. The system is easily configured via the web through an internal GUI.

Other capabilities of this update include individual rotary scheduling, Support for Bluetooth headphones, as well as a new QuickMute feature that allows users to easily adjust the volume of all channels to zero.

SmartPanel series 1200

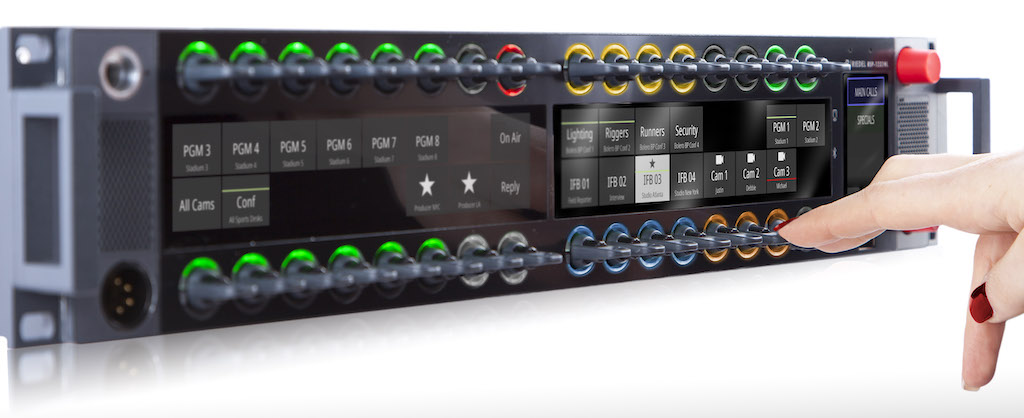

Another of the proposals to be seen at the Riedel booth at ISE 2019 it's your SmartPanel series 1200, with the RSP-1232HL as the protagonist, which features multiple full-color multi-touch displays, 32 hybrid lever keys, the ability to leverage applications to deliver multifunctionality and easily adapt to the different workflows used today.

Like the company's latest SmartPanel application-based user interfaces, the RSP-1232HL panel is ready for users to work the way they always do, while opening up entirely new possibilities.

Each of the 32 RSP-1232HL lever keys integrates a rotary encoder for control over parameters in the same location as the key. Users can choose custom colors for key labels or led rings placed around each key.

In addition, RSP-1232HL panel supports AES67 audio via two fiber SFP and two RJ45 connections, which in turn offer a variety of chain connection and redundancy options, with extraordinary wiring flexibility.

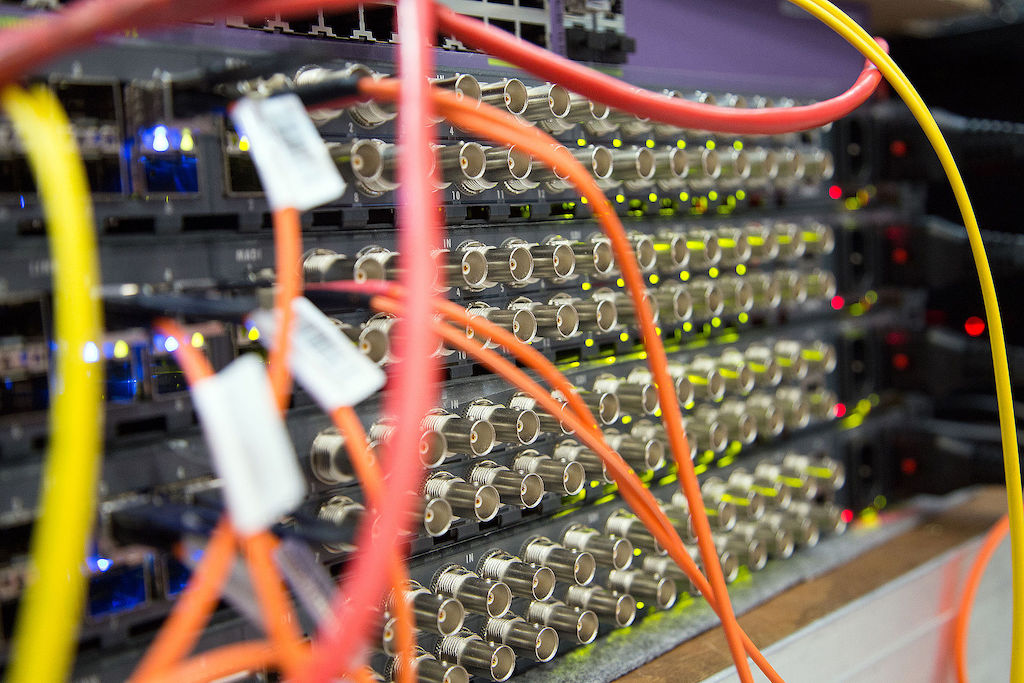

MediorNet MicroN IP

Riedel's MicroN IP application creates a perfect bridge between the award-winning MediorNet real-time signal routing network and the company's IP networks. Supports SMPTE ST 2110/AES67 compatible video and audio, as well as baseband video (Sdi) and audio (madi).

Combined with all built-in features - including audio embedding/descaling, frame synchronization, sample rate conversion, audio/video delay, signal routing and on-screen display-, MicroN IP makes the device a universal tool for all IP interface needs.

At the same time, the device can network with all existing MediorNet products. MicroN IP applications range from a standalone SDI-to-IP converter to a fully networked system, with numerous different baseband inputs and outputs and IP gateways.

This app includes support for up to four High Speed MediorNet links, four SMPTE inputs and outputs 2110-20, four 3G-SDI baseband signals and eight 3G-SDI outputs. Of the latter, half are dedicated to monitoring SMPTE ST flows 2110-20. In addition, Riedel MicroN IP also supports up to 128 AES67 audio channels, two optical MADI ports and synchronization I/O.
