Alfalite Led screens shine on various set of Prado del Rey de RTVE

The Led screens of this Spanish manufacturer, with a total of 192m2 in resolutions ranging from Full HD to 4K, They are already a reference element on the sets of the programs Heart, The Morning, Spain Direct, Starting today, The Adventure of Knowledge and Here is the land Chain.

After the award to Media Technologies Data of the public tender for the supply of LED screens to the sets of Prado del Rey de RTVE, together with the Spanish manufacturer Alfalite, at the end of last year (more data in Digital AV), The integration of these LED systems has been completed and they are operational in important programs of the chain.

For this project, Alfalite's top-of-the-range products have been chosen, specifically the Modularpix Pro P2 panels (Litefix 2.6i), that can reach a brightness of more than 1.500 cd/m2, a refresh rate greater than 4.000 hz, 18 Color-scaled bits and low processing latency.

The efficiency in the electronic design and the technology used in the alloys used in the chassis of these systems allow for convection dissipation, Quiet operation and maximum reliability. By using a high-quality SMD LED with a reduced package and an anti-glare protection mask system, contrast ratios are achieved that are much higher than other products of the same resolution on the market.

The ergonomic design of the set ensures that any component of the equipment can be easily replaced in a few seconds, even with the equipment running, without interrupting its intensive professional use.

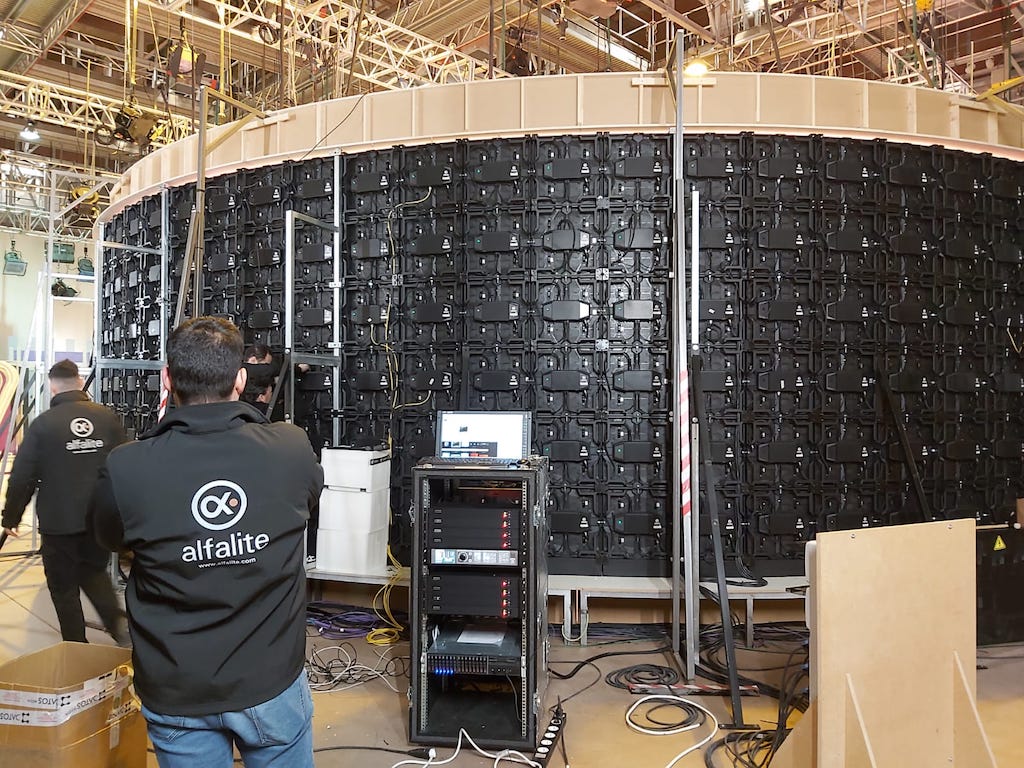

The installation and configuration of these 768 Panels, forming up to a total of fifteen screens, It took place during the months of December and January, with the following location.

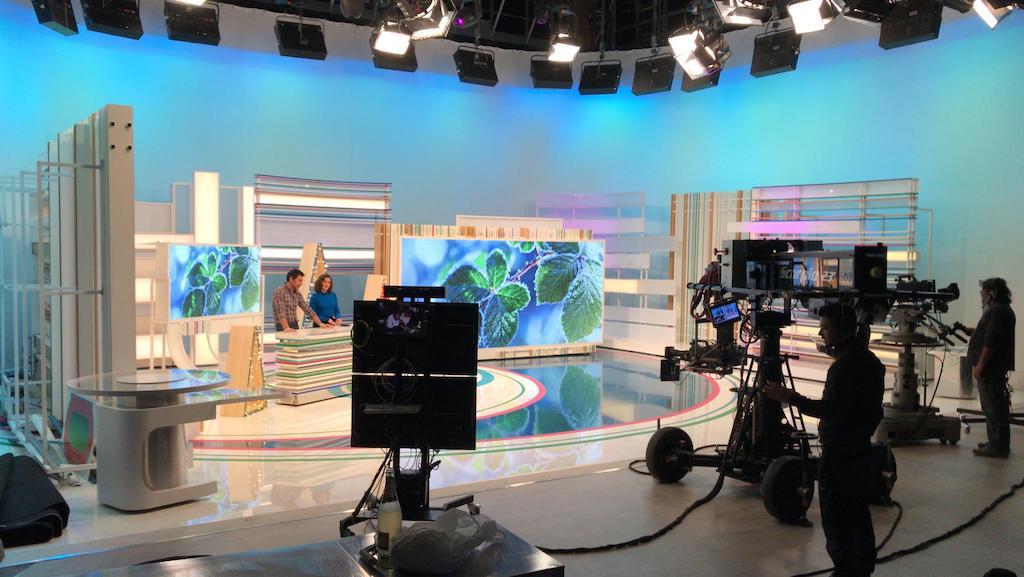

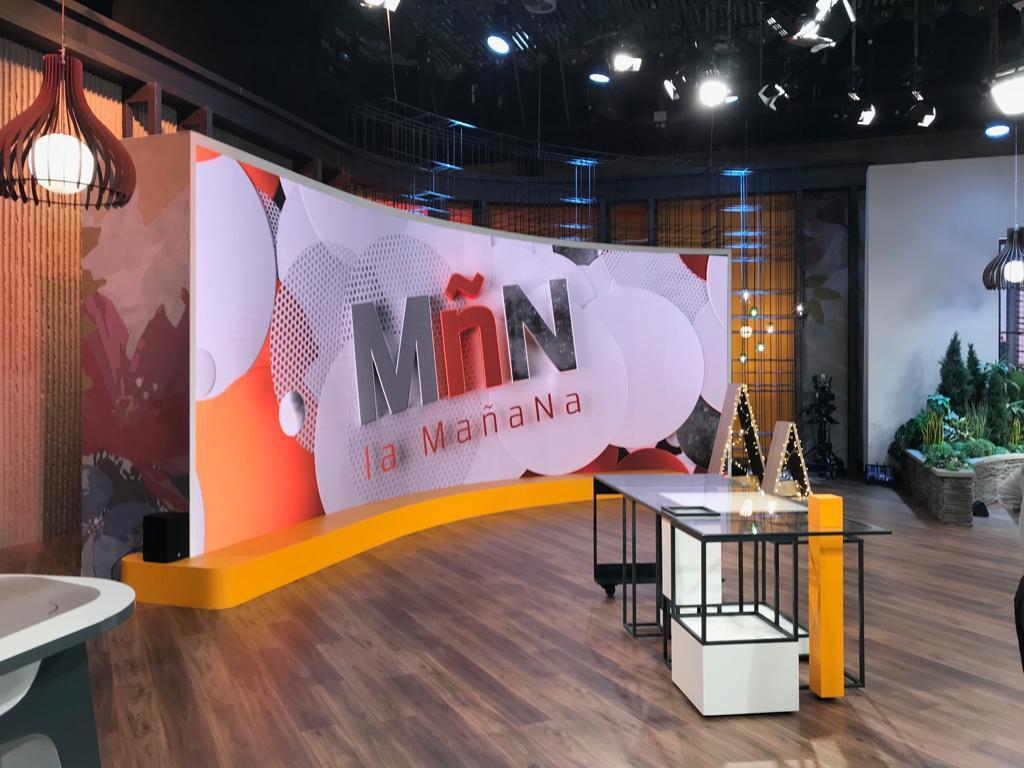

The sets of the programs The Morning and Starting Today, in the studio 1 of Prado del Rey, a curved-mount LED display has been installed, of 9×3,5 meters and 4K resolution, while the rest of the screens are of various sizes: 5×2,5 / 2,5×3 / 3,5×2/ 5,0×3 and 4.5×3.

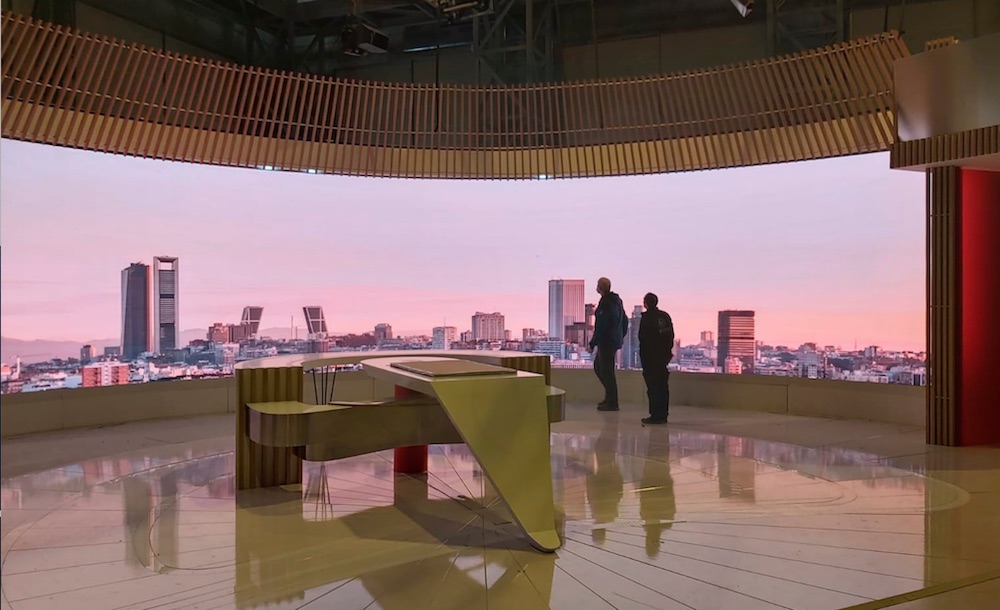

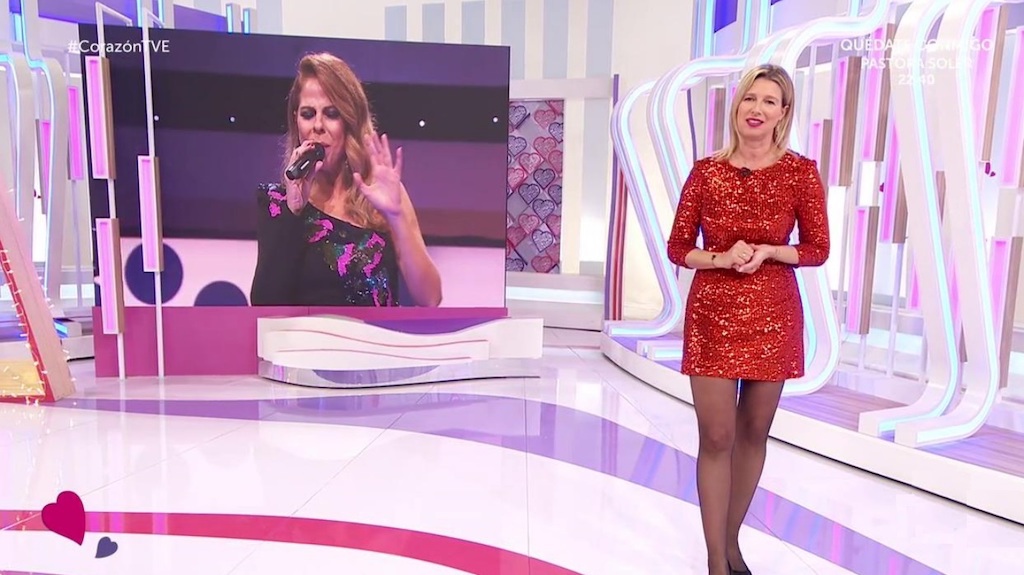

Also in the studio 1 there are two LED screens for the program Here is the land, whose dimensions are 4.5×2 and 2×1,0 metre. In the case of Spain Direct and Heart, in the studio 4, Two curved LED screens have been installed in the first one, one with the largest project size with 14.5×3 meters and another of 3.5 meters×2,5 metre), and for the program Heart (which also occurs in the studio 4) a 3 Led unit has been opted for.×2 metre.

last, in the studio 3, in which the program is produced The Adventure of Knowledge, two 2.5 mm LED screens have been installed×1,5 meters each. The image processing and scaling system is composed of Alfalite's LVP4K, to which the VX4s model of NovaStar.

Alfalite LVP4K allows configuration of up to four HDMI inputs 2.0, with support for UHD resolutions and with up to eight DVI outputs powering the display drivers, task carried out by NovaStar MCTRL600 teams, it is capable of handling up to 2.3 millions of pixels. Multiple units can be cascaded to handle higher resolution displays with simple control.
