Datapath Image2K: 4K graphics card for multi-display installations

This solution, that allows you to mix 4K and HD outputs at 60 fps via HDMI, power multiple video walls and individual LED displays from a single system, making it ideal for security applications, Offices and digital signage.

The Manufacturer of Video Management Solutions Datapath has added the Image2K model to its range of professional 4K AV graphics cards. A solution designed specifically for multi-output applications and LED displays.

This card can mix 4K and HD outputs at 60 Frames per second. Systems built with the VSN or iolite chassis 600 Datapath can use up to 8 Image2K, What it provides 32 HD outputs, 16 4K outputs or a mix of both.

With the outputs synchronized on all cards, This allows multiple individual video walls and displays to be powered from a single system, making it ideal for security applications, Corporate Office Displays, Digital signage for stores or multi-video wall solutions.

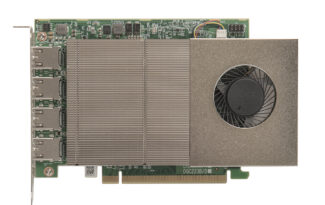

An industrial-grade, near-zero noise fan is integrated with the heat sink to ensure optimal operating temperature and efficiency are maintained at all times.

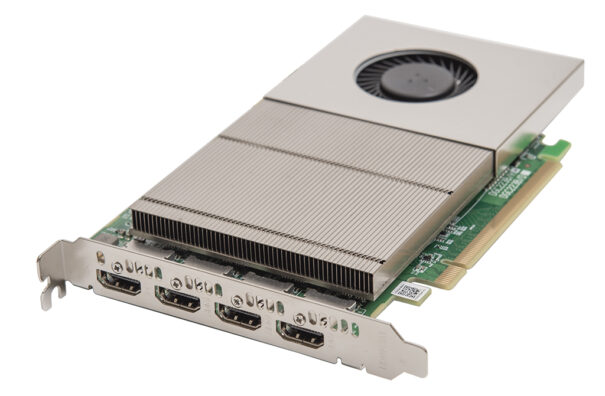

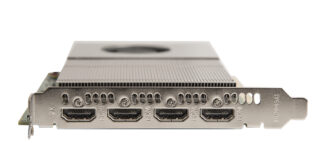

Connectivity is provided by four HMDI outputs, offering 2,560 resolution×1.600 at 60fps, but it can also be configured as two at 3,840×2.160 to 60 fps or one at the same resolution and three HD (1.920×1.080@60) of the same card.

Image2K also supports 7,680×1.080@60, which makes it an optimal solution for LED screens with long billboards found in control rooms, Sports Stadiums & Airports.

This latest Datapath card sits between the ImageDP4+ model and the flagship Image4K card. It is available as a card or pre-installed in a Datapath VSN or iolite video wall controller.
