Biamp VenuePolar 3 simplifies the design of Community IV6 loudspeaker systems

The new VenuePolar Ease Focus version of Biamp goes a step further to facilitate the current workflow with automated features that eliminate the lengthy manual adjustment required to fine-tune a Array.

Built into the series Community IV6 GLL v.3.20, the new and improved plugin VenuePolar of Biamp, brand that markets in Spain AVIT Vision, enables system designers to achieve complete automation of an array configuration when working on Ease Focus 3 (version 3.1.14).

This includes automatic synchronization of box models and counts from VenuePolar to Ease Focus software 3, saving the designer the time to manually move the configuration from the plugin to the software.

Filter optimization

When advanced users want to manually adjust the mechanical array in Ease Focus 3, now they have a function to improve the filters within the plugin. specifically, returns the best filter settings for the arrays given mechanics, with any number of boxes.

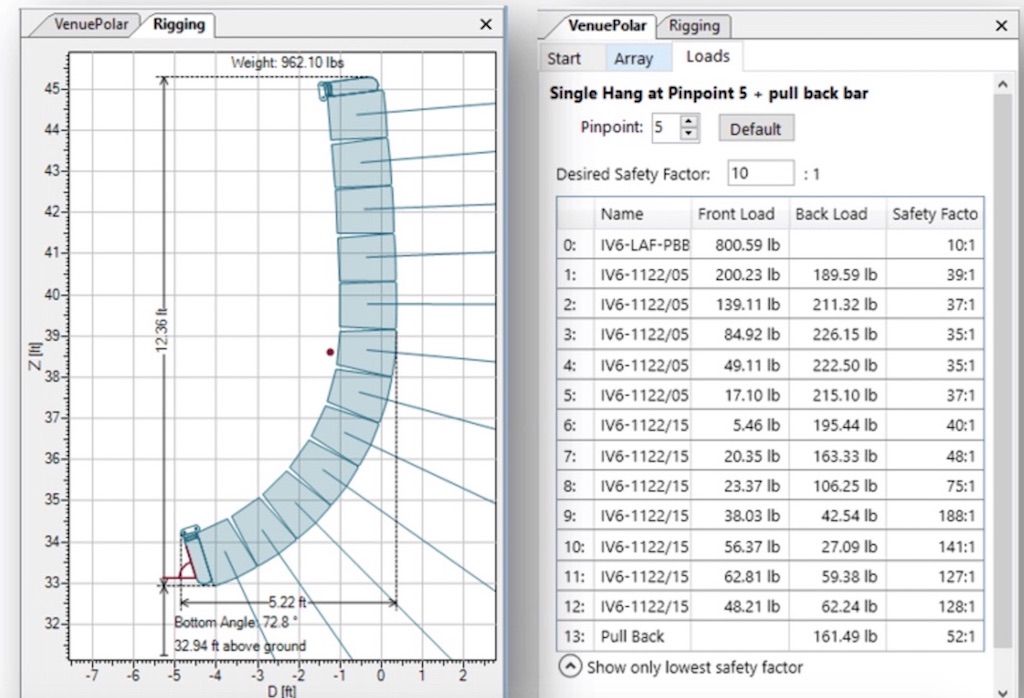

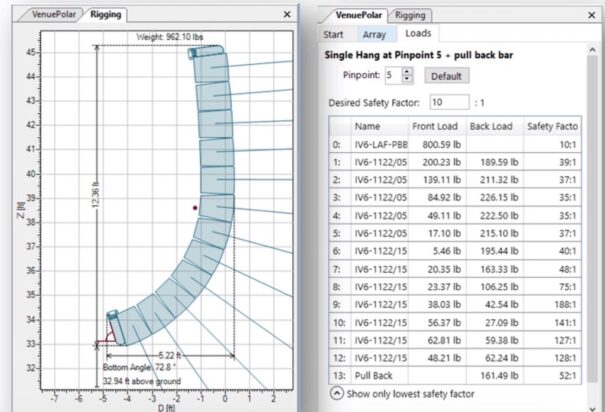

In addition, new capabilities have been added to the Security Calculator Rigging, located in the Loads tab. Backspace bar now allows designers to build safely arrays larger, up to twenty boxes, in virtually any configuration.

A new and improved bill of materials in the reports section provides a simpler summary of speaker quantities and types, separation brackets and other accessories needed in each array to simplify the ordering process. The latest version of Ease Focus 3 can be downloaded here.

Biamp Community IV6

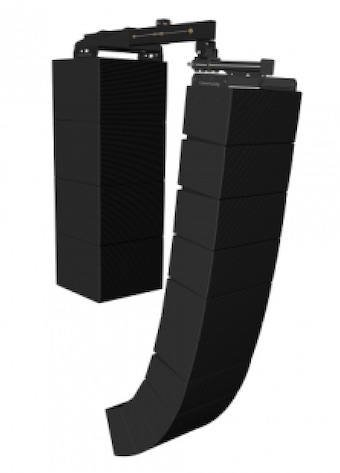

IV6 Modular Vertical Array, which is part of the line of high-performance speakers, for indoor and outdoor, of the Community series I, is a scalable and flexible sound reinforcement system.

Offers two options of speakers (with a vertical angle of 5 Or 15 Degrees) and has 55 different response conformation filters within passive acoustic optimization settings (Pao), that are located on the back of each box.

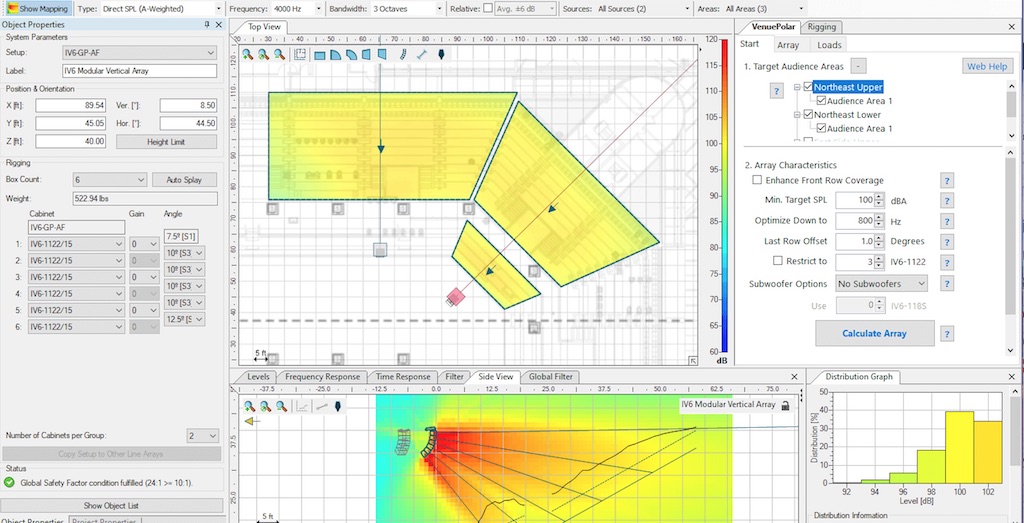

VenuePolar helps system designers determine, quickly and easily, the number of enclosures, the model, the recommended frame angle and separation angle for the arrangement of an enclosure and to determine the PAO settings for each, reducing thousands of possible combinations of settings at the push of a button in the software.

Users can boost speed with VenuePolar, efficiency and accuracy, while ensuring better consistent coverage and confidence that the audio design will meet customer expectations.
