Alto Professional TX3 Series: self-powered enclosures for intensive use

With the TX3 series, Alto Professional has created a family of self-powered enclosures to deliver the best audio performance in the most demanding applications.

Able to deliver the best performance with heavy usage, the new series of enclosures TX3 of Alto Professional, brand that markets Audio-Technica Iberia, uses some of the technology of its popular TS3, to which it adds more power and clarity to enjoy the best sound.

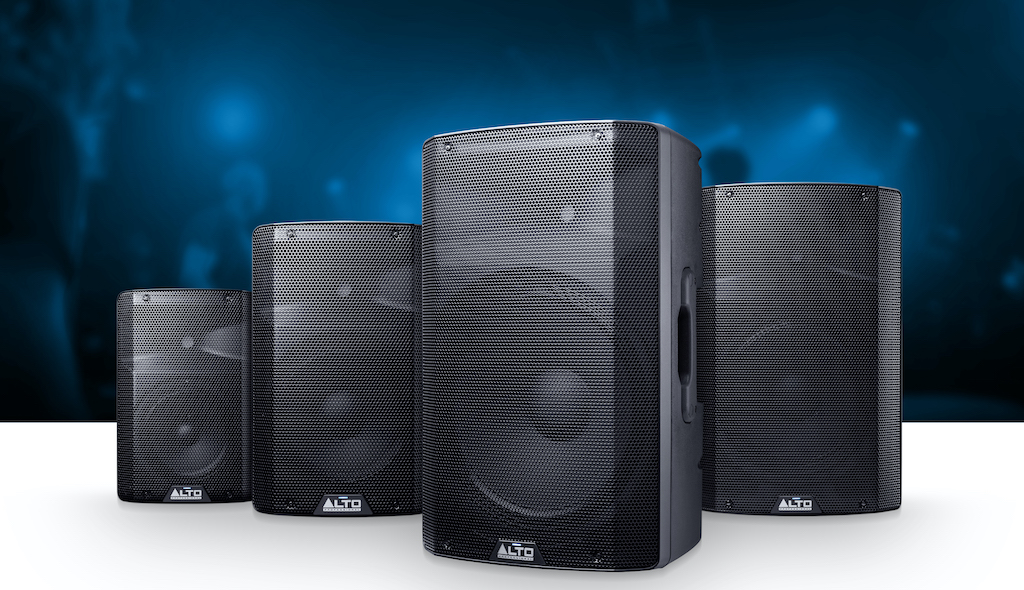

The new range consists of four models: TX308 and TX310 offering 350 W, and TX312 and TX315, delivering up to 700 W. All of them have design of two-way biamplified and are equipped with a woofer long haul and a transducer 1 compression″, housed in a precision horn.

This speaker horn of the TX3 series has been designed to improve performance at high frequencies and generate an extremely accurate 90°H X 60°V radiation pattern, with which an optimal coverage of the audience is achieved.

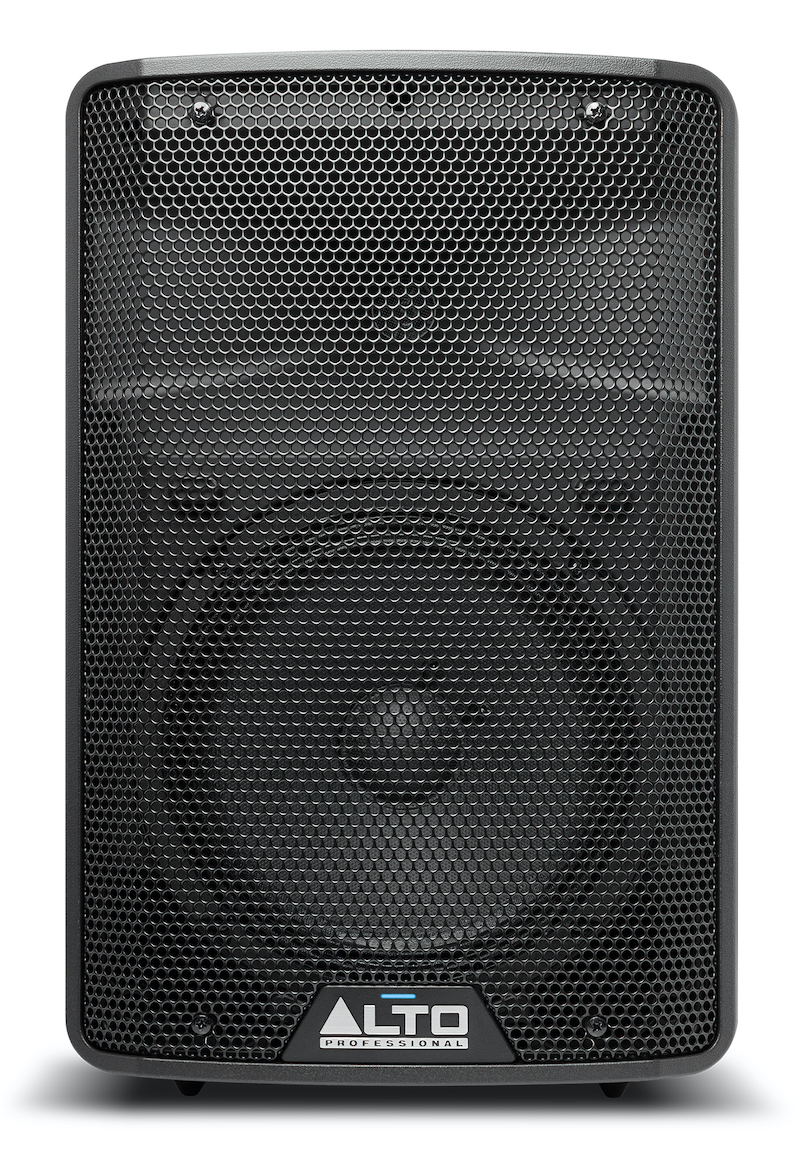

Tx3 series features robust enclosures, lightweight and easily transportable. Its trapezoidal profile allows its placement both in an upright position and in the form of a wedge-type monitor, and its steel grid provides total protection to transducers.

To this is added a complete offer in terms of inputs and outputs and various assembly options to offer maximum flexibility in the installation.

TX3 series models

TX308

• Self-powered enclosure of two tracks and 8″ Inch.
• 350 Peak W (175 Continuous W, Class D amplification).
• Transducer LF 8″, 1.4 coil″ inch.
• 1 HF transducer″ titanium compression and diaphragm.

TX310

• Self-powered enclosure of two tracks and 10″.
• 350 Peak W (175 Continuous W, Class D amplification).
• 10 LF transducer″, 1.5 coil″.
• 1 HF transducer″ titanium compression and diaphragm.

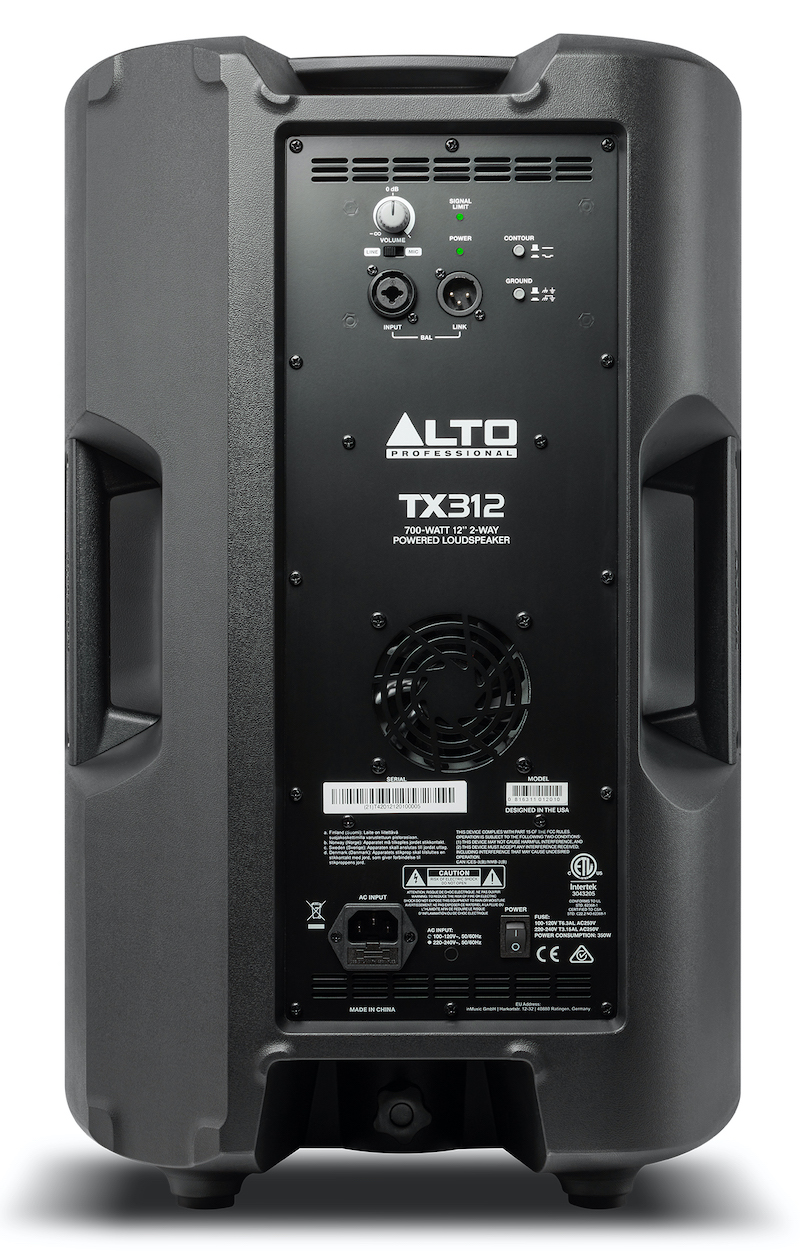

TX312

• Self-powered enclosure of two tracks and 12″.
• 700 Peak W (350 Continuous W, Class D amplification).
• 12 LF transducer″, 2 coil″.
• 1 HF transducer″ (25,4 Mm), titanium compression and diaphragm.
• Contour Switch, which provides enhancement of +3 dB to bass and treble.
• Ground disconnect switch, that eliminates unwanted noises and buzzes.

TX315

• Self-powered enclosure of two tracks and 15″.
• 700 Peak W (350 Continuous W, Class D amplification).
• 15 LF transducer″, 2 coil″ (51 Mm).
• 1 HF transducer″ (25,4 Mm), titanium compression and diaphragm.
• Contour Switch, which provides enhancement of +3 dB to bass and treble.
• Ground disconnect switch, that eliminates unwanted noises and buzzes.
