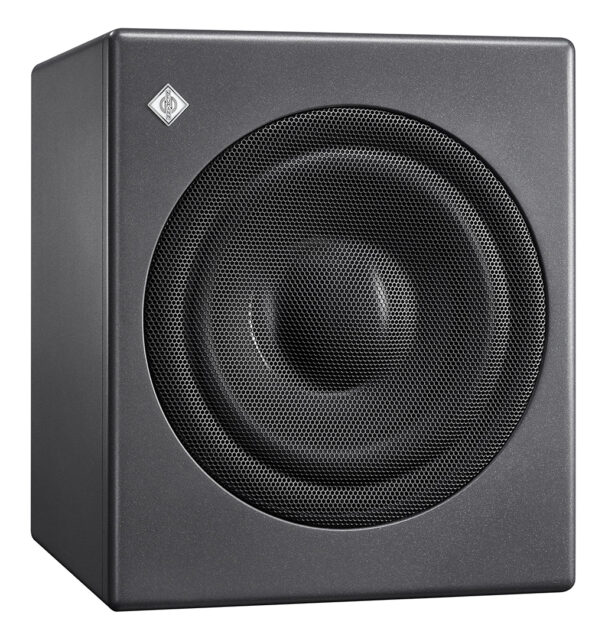

Neumann offers a new subwoofer KH 750 for AES67 networks

The KH 750 AES67 of Neumann.Berlin is the ideal subwoofer when in an AES67 infrastructure you want to route the audio over IP to the speakers, redundantly and losslessly.

The German firm Neumann.Berlin, that it sells Magnetron, has presented the subwoofer KH 750 AES67, a variant of the KH 750 Dsp for standard-based environments AES67. Thanks to your DSP, it's more than just a subwoofer, since qur offers access to the automatic alignment system of ma monitors 1 of Neumann. Allows you to correct the entire monitoring system depending on the room, and even the amplitude and phase response of neumann analog speakers connected to it.

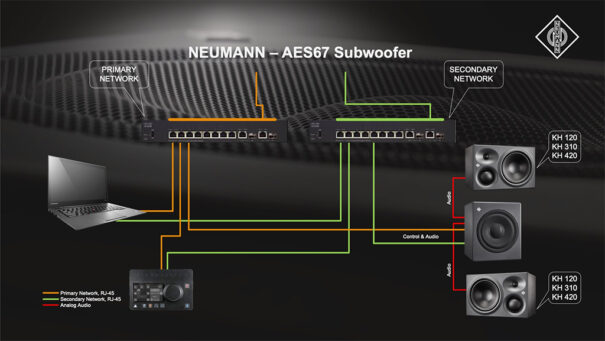

"The compact KH 750 AES67 is the ideal subwoofer when in an AES67 infrastructure you want to route audio over IP to the speakers redundantly and without loss. Its AES67 interface allows you to control not only the subwoofer but the entire stereo system, including speakers connected to the KH 750 AES67", explains Markus Wolff, Portfolio Manager.

Your dual AES67 audio network connections conform to broadcast standards, like the ST 2110 and the ST 2022-7 with redundancy. In addition, supports AES67 network signals generated with Dante.

In this equipment the acoustic properties of the KH have been maintained 750 Dsp, as well as many other features, as the Bass Manager bass manager, four routing modes, flexible acoustic controls that facilitate a wide range of configurations and installation conditions, in addition to analog and digital inputs and outputs. In addition, features a powerful DSP.

In combination with automatic monitor alignment ma 1, available for Mac and PC, the monitoring system can be calibrated according to the characteristics of the room. This calibration also includes connected monitors, whose responses in amplitude and phase are corrected to adapt them to the monitoring environment.

The KH 750 AES67 is the ideal complement for all analog monitors in the KH range, as the KH models 120, KH 310 and KH 420, as well as DSP-based Neumann monitors such as the KH 80 Dsp.

Deep bass in small size

The new woofer of great excursion of 10 inches is provided with a powerful and linear magnet with technology ELFF (Extremely Linear Force Factor). Despite its compact size, the KH 750 AES67 offers a bass extension of up to 18 hz.

How subwoofer frees connected monitors from much of the low-frequency playback, intermodulation distortion is reduced and the maximum sound pressure level increases. If another KH is added 750 AES67, it is possible to create much larger systems.

"The new KH 750 AES67 is Neumann's big bet for AES67 networks. Takes the complete monitoring system to new dimensions: deeper bass, greater SPL and greater sound transparency. In addition, the integrated DSP allows to standardize the response in frequency and align the amplitude and the phase according to the room by means of the revolutionary MA system 1, thus managing to reproduce the sound with unprecedented precision", summarizes Ralf Oehl, ceo of Neumann.

characteristics:

• Bass extension similar to that of a stereo monitoring system.
• Higher maximum sound pressure level.
• Lower harmonic and intermodulation distortion.
• Powerful DSP for amplitude and phase calibration of the entire system depending on the room.
• ST-compliant AES67 audio network interface 2110 fully redundant.
• Redundant physical network for ST environments 2022-7.
• Compatible mode to receive DANTE AES67 signals.
• Lower cutoff frequency: 18 hz.
• Speaker settings: great woofer tour of 10 inches with ELFF technology.
