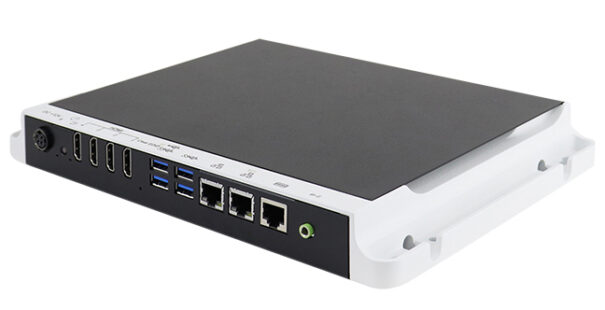

iBase SI-334: digital signage player for multiscreen applications

The digital signage player iBase SI-334 Leverages Processor Performance AMD Ryzen V2000, incorporates AMD Vega GPU and four HDMI. Ideal for multi-screen applications in public spaces

iBase Technology has introduced the digital signage player SI-334, a computer that takes advantage of the performance of a AMD Ryzen Embedded V2748B with Radeon graphics that provides a 40% more graphics output than the previous generation.

This videowall player improves the shopping experience in the store with eye-catching and attractive screens.
It is an ideal solution for multi-screen applications in public spaces, 5G-compatible offering 4K graphics performance. Supports a resolution of 7,680×4.320 in a videowall configuration of 2×2, 15.360×2.160 board menu 4×1 and 3,840×8.640 in 1×4.

Its four HDMI outputs 2.0 come with standalone audio and configurable using AMD Multi-Display Eyefinity technology. The platform also features HDMI-CEC for on/off control of the display, via HDMI and EDID ports, that prevents image loss or faulty Display of Windows due to cable connection problems or an unscognized screen.

With measures of 269x193x31.5 mm, the industrial-grade SI-334 is designed with segregated flow ventilation, for increased reliability and performance 24×7. Comes standard with 2×4 GB ddr4 memory, 128 GB of M.2 storage and power adapter 150 W, as well as iSmart energy saving technologies and Remote Observer monitoring. Both Windows are supported 10 IoT Enterprise as Linux Ubuntu.

characteristics:

• AMD Ryzen Embedded V2000 Processors.
• Vega GPU with up to 7 units.
• Four HDMI 2.0 with standalone audio output support.
• Intelligent Observer remote monitoring and energy saving technologies.
• Hardware CEC and EDID emulation features, integrated with software configuration mode.
• 2 DDR4-3200 SO-DIMM, dual channel, maximum 64 GB.
• M.2 B-Key for 5G or LTE options.
• M.2 M-Key for storage.
• M.2 electronic key for WiFi options, Bluetooth or capture card.
• Supports TPM 2.0 and surveillance timer.
• Thin, segregated flow ventilation design.
