Partenord Habitat designs a functional and flexible conference room with Arthur Holm

In the conference room of the headquarters of Partenord Habitat DynamicX2 and Dynamic3 monitors have been installed, as well as the discussion system of Televic. La instalación AV se completa con cámaras PTZ de Lumens, Speakers Fohhn and a videowall Philips from 110″. The automation of the room is carried out by Extron.

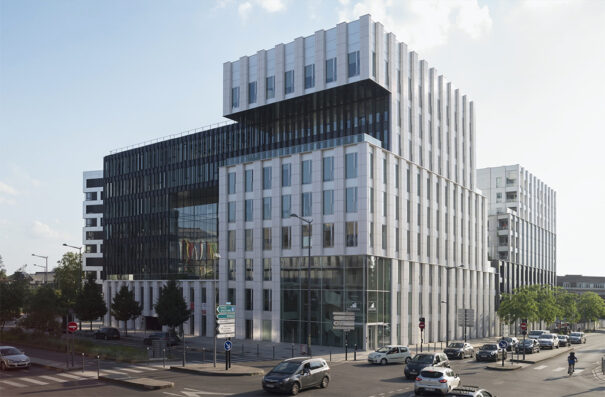

The headquarters of Partenord Habitat is located on a plot of strategic location, at the entrance of the city of Lille, and on the corner of Rue de Cambrai and Boulevard de Belfort. The center of this building is its conference room, which has an AV system based on the monitors of Arthur Holm.

In the heart of a dynamic neighbourhood in the joint development area of Porte de Valenciennes (ZAC), Partenord seeks to lead Lille to the third industrial revolution through a mixed project, which includes the headquarters of Partenord Habitat (North Department Office of Public Housing), bureaux, housing and shops.

The building emerges from the ground along two chanflanes in three distinct sections.: offices, headquarters and housing, united with each other with a common basis. Comprises a shared meeting room, which can be sub-divided into 6 different zones using mobile partitions; one of conferences (capable of housing 50 people); and a private dining room linked to an accessible terrace, partially covered by the back door.

Aligned with the concept of holistic design, the integrator Alive Technology helped create an inspiring conference room, functional, flexible and easy to use.

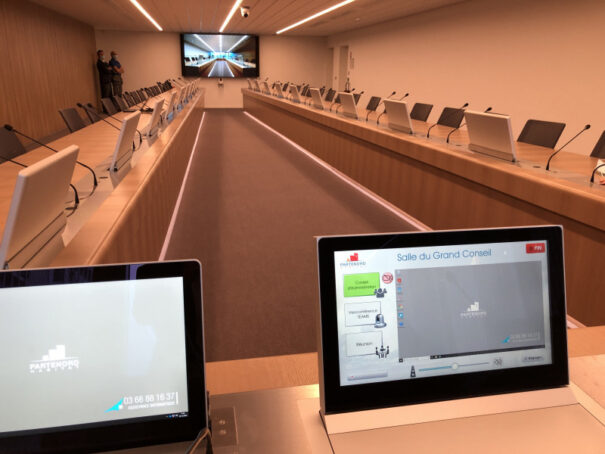

The main element of this room is the table. Constructed of U-shaped wood, contains a central stainless steel ornament that houses the audiovisual equipment, such as retractable monitors DynamicX2, the folding motorized Dynamic3 and discussion systems Televic, also flush on this surface.

Integration is completed with an automatic camera tracking solution PTZ of Lumens, Fohn speakers, one Philips videowall of 110 Inch, and room automation, by Extron.

The heart of the conference room

The table contains 20 retractable monitors AH22DX216GA by Arthur Holm, made of anodized aluminum and whose patented motorized system allows the lifting and tilting movements to be carried out by a single motor.

These retractable monitors allow their configuration and diagnosis through the wireless application AHlink, as well as through the interface ERT-30. This allows easy and direct access to the most frequent configurations and facilitates commissioning and access to equipment. No physical access to monitors is required to configure or diagnose their installation.

On the edge of the table, two monitors have been installed AH19DX2HDGA and a Dynamic3 AH19D3HDGA collapsible, with touch screen and keyboard and mouse. This, entirely made of aluminium, is used for room automation control.

It has an aluminum tray on which to place the keyboard and mouse, that is automatically activated together with the opening of the monitor and that allows them to be hidden inside the computer, once closed.

El interfaz ERT-30 permite una fácil y rápida integración con Extron, que proporciona un puerto AHnet para controlar hasta 30 unidades y un USB para actualizaciones futuras del firmware.

The system One Touch (OTAS) hace que el direccionamiento de los productos motorizados Arthur Holm sea muy fácil. La primera unidad se activa mediante la pulsación de los botones de la carátula de sobremesa de los monitores, para obtener la dirección 1. El siguiente monitor obtendrá la dirección 2, y así sucesivamente. El sistema OTAS está disponible en la mayoría de los productos motorizados de Arthur Holm.

El interfaz ERT ayuda a reducir los costes de instalación en términos de equipo y tiempo. Es fácil de instalar y configurar. Enables faster installation and eliminates the need for external relay boxes and additional power outlets. likewise, allows you to get Arthur Holm virtual support if an Internet connection is available.
