Visual Productions DmxMerger: DMX signal mixer/fusion

With six inputs and one DMX output, optically isolated, the DmxMerger offers three different blending or blending modes.

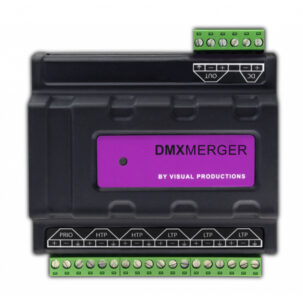

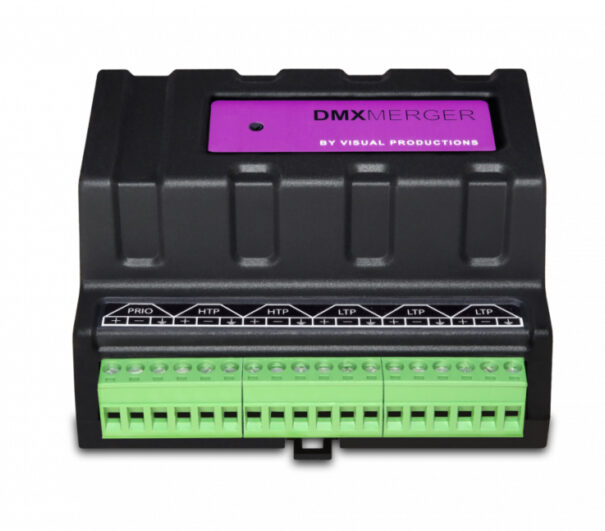

Visual Productions, brand that distributes SeeSound, has in its catalog with the mixer / fusion of signals DMX-512 for DIN rail, DmxMerger. A device that features six optically isolated DMX inputs and output.

The DmxMerger offers three different blending or blending modes: last order preference, preference the highest value and priority.

the first mode selects one of the ltp entries based on the port that had the most recent change. this can be a change in channel levels or a dmx signal that is activated. the highest value preference mode is used to combine the htp inputs and the result of the ltp merge. In this mode, each dmx channel is compared between the inputs and the highest value is forwarded to the output.

In Priority mode, if there is a DMX signal in the priority entry, this is forwarded directly to the output. In this case, all other entries are ignored.

the priority input can be used to connect the primary dmx controller. If it fails, the dmxmerger will instantly switch to a secondary dmx controller connected to one of the other input ports.

When the DMX installation requires more than one driver, dmxmerger can combine the outputs of multiple controllers into a single dmx network.
