FBT renews the electronics of its XPro series with the 115A system for installation

The new speaker 115 A of the XPro series of the Italian manufacturer FBT provides audio quality and design in fixed installations, in addition to its use as a floor monitor thanks to the asymmetrical shape of its loudspeaker.

The new design of all the electronics of the X-Pro Series of FBT, brand that markets magnetron in the Spanish market, increases power and adds important innovations, as a three-channel mixer and the use of Bluetooth 5.0 for streaming audio from mobiles and tablets.

The 'power unit' is also new, as it has a switched power supply, with automatic voltage switch in the range of 100-240Vac; two high-efficiency Class D channels; a three-channel mixer with two micro/line inputs; a stereo input and a channel for streaming Wireless audio with Bluetooh 5.0 (backward compatible) for simultaneous recognition of two speakers and remote volume control.

The introduction of a fan with intelligent control of the number of revolutions makes it easier for the operating temperature of the amplifier to remain low, which guarantees its stable operation and practically no noise in the installation.

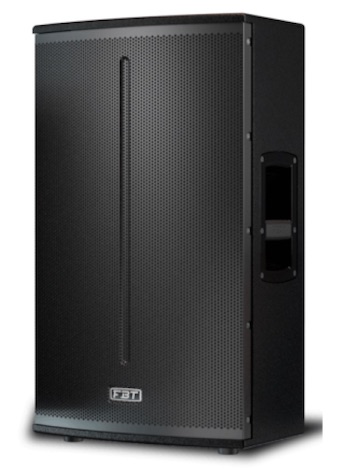

One of the most powerful models in this series is XPro 115A, with a lightweight yet robust design thanks to a gas injection molded plywood enclosure, available in black finish to integrate into any environment.

In addition, the asymmetrical shape of the speaker of the FBT XPro115A speaker also allows it to be used as a floor monitor when required. Has a two-way design, with a 15" low-frequency woofer and a 1" HF compression driver, both coupled to a rotating constant directivity horn of 80° horizontally and 50° vertically.

With a frequency range of 42hz – 20khz, this speaker provides high-fidelity sound, for both voice and music applications, with a maximum SPL of 130Db. It has a low frequency amplifier of 1,200W and another of high frequency of 300W.

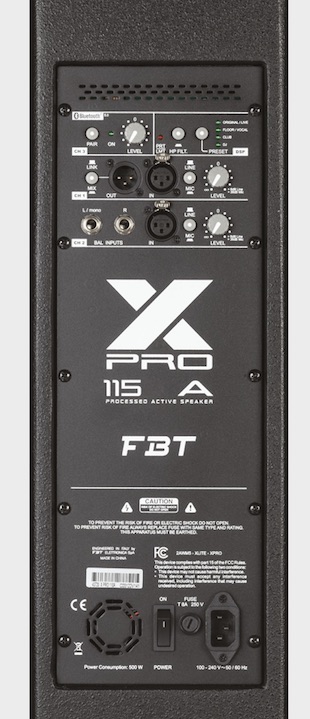

With a weight of only 22 Kg. for an enclosure of these characteristics, the control panel features a three-channel mixer with two microline inputs; a stereo input and a dedicated channel for Bluetooth 5.0; two xlr inputs, two micro-line selectors and one dsp preset selector, Bluetooth 5.0 with Pairing Led.

The four points of M10 anchor integrated into the housing, along with optional mounting brackets, allow you to easily mount the FBT XPRO 115A speaker on walls or ceilings.
