Telcat's new control room revolves around a video wall by AG Neovo

The neuralgic point of this control room is a videowall configured with nine screens AG Neovo PN-55D2 and controlled with the processor Vuwall VuScape VS120.

The subsidiary of Salzgitter AG, Telcat, has created a control room from where the security of the company's production facilities is controlled. A videowall of AG Neovo is the main tool that guarantees it.

Salzgitter AG is one of the most important steel producers in Central Europe. Located in Germany has close to 25.000 employees, produces almost 7 million tons of steel per year and generates 7.000 million euros in sales.

Factory facilities and production sites have very high safety requirements. That's why, at the end of 2021 a new control room was put into service in the contact centre of the Telcat subsidiary.

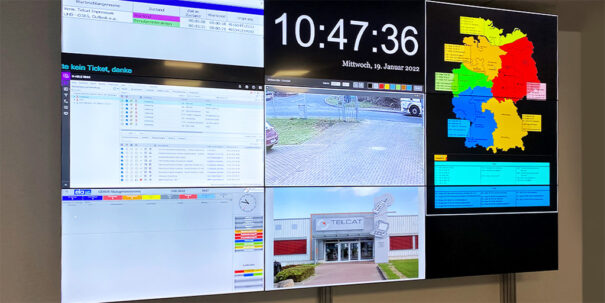

The central unit of the system integrates a videowall with a 3×3 layout, configured with 9 Screens PN-55D2 AG Neovo, in addition to having modern supports of the series VWM easy maintenance. Six workstations can operate the connected system 24 hours of the day.

Start-up of the project

Telcat and VuWall defined the requirements for high-quality videowall management systems in cooperation meetings. A processor was calculated and configured VuScape VS120, with VuWall2 management software, for Telcat's existing server rack. It features 12 display port outputs and 4 HDMI inputs.

the 12 outputs service the nine screensPN-55D2, as well as several wall monitors of the PD series of AG Neovo, located in the adjacent room through an image divider. the 4 inputs are used for two internal monitoring systems, using video management software from Avigilon and the BKS risk management system/Ela-Soft.

The global system is completed with a Neovo AG TX-10 as a control panel located in the center of the room and that shows the VuWall2 control panel of free configuration for the visualization of individual images in the videowall.

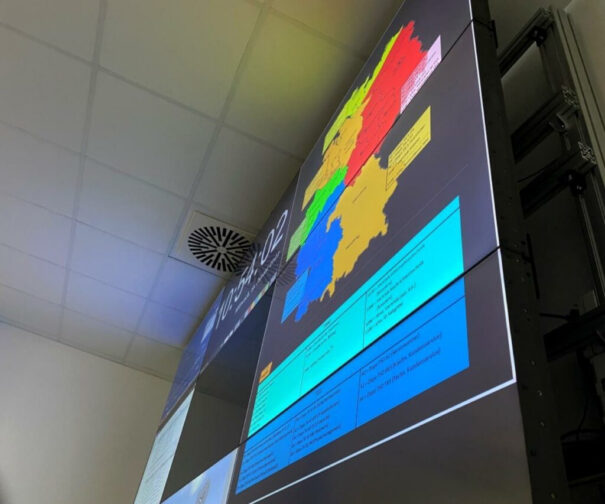

Andreas Kath and his team took care of the complex installation and technical preparations. It was necessary to take into account details such as the load capacity of the wall or the importance of the mounting plates on the back of the wall screens.
