Optimus Showcases the Benefits of MXD-88 Audio Matrix

With eight inputs and the same number of outputs, DSP and control from remote controls or app, the MXD-88 audio matrix from Optimus can be configured and customized to suit each installation.

The Audio Matrix MXD-88 is part of a suite of solutions from Optimus Suitable for soundproofing hotel lounges, Plenary halls of City Councils, Auditoriums, Sports courts or multipurpose pavilions, that is combined with high-quality speakers BS-208 and LS-100T or with any professional sounding speaker.

The proposal for this type of enclosure is completed with wireless microphones, Gonsin conference and simultaneous translation systems, Univox Induction Loops and Group Audio, with the amplifiers, Power Stages, line speakers 100 V, etc. from the Optimus catalog.

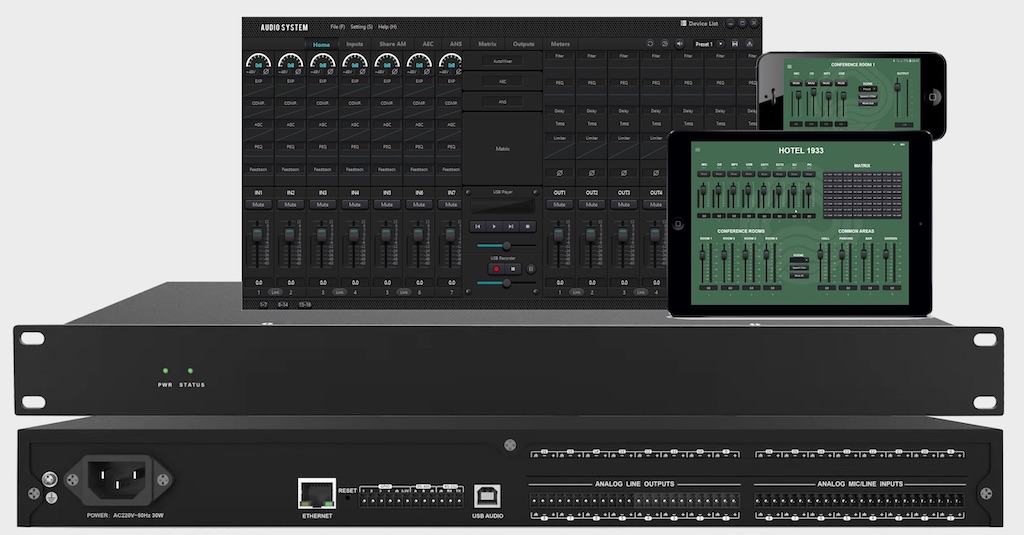

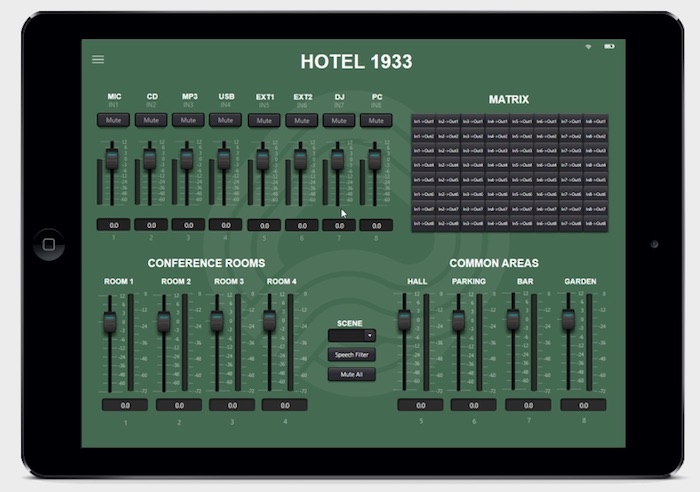

MXD-88 features eight inputs and eight outputs and DSP, With control from remote controls or from an app, available for Android and IOS, Configurable and customizable. Inputs can be microphone or line inputs, with selectable gain settings and phantom power capability. The sample rate is 48 kHz and the signals are encoded with 24 Bit.

The Digital Signal Processor (DSP) includes multiple functions, as an expander, compressor, limiter, Automatic gain control (AGC), equalizer, Feedback suppressor, Self-mixing, Echo Canceller, Noise Suppressor, Audio Matrix, filters, Delays…

It also has a USB port that, when connected to a computer, behaves like a sound card to play a music channel, and a complete software to configure all the parameters.

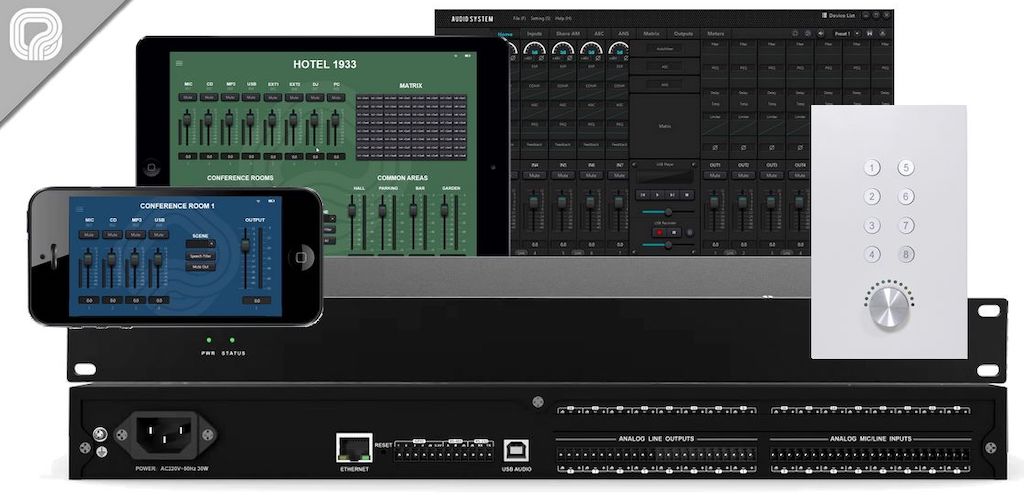

The Remote Control Panel (via Ethernet) WPD-8P It has eight keys and a rotary knob. From the configuration program, a volume adjustment function can be assigned to each key (by rotary control), Scene Selection, muting an input/output (Mute), Run a command, etc.
