Martin Audio Announces Ultra-Compact THS Enclosures

For installations where high noise levels are required, The new speakers of Martin Audio They are designed to work in bi-amplified mode.

Able to provide a Maximum SPL up to 135 dB peak THS enclosures, the latest product announced by Martin Audio, It's a very powerful point source speaker, that combines high output capacity with extended frequency response.

It joins the extensive TH series and is ideal for use in applications and installations for medium-sized DJ clubs looking for very high sound levels, provided by a compact, self-contained speaker system.

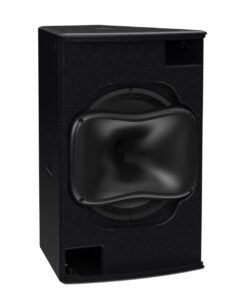

Incorporating three Transducers in a Trapezoidal enclosure Relatively small, Its innovative tri-axial configuration provides a very high output for its size and gives it a great advantage over comparable two-way systems in terms of mid and treble performance. Pairing it with Martin Audio's SX compact subwoofer, brand that distributes Audio-Technica, to amplify bass response, A dynamic four-way configuration with a very compact size is created.

To ensure the most efficient use of the number of amplifiers, THS is designed to work in bi-amplified mode, as it has an internal passive network that performs the function of mid/treble crossover.

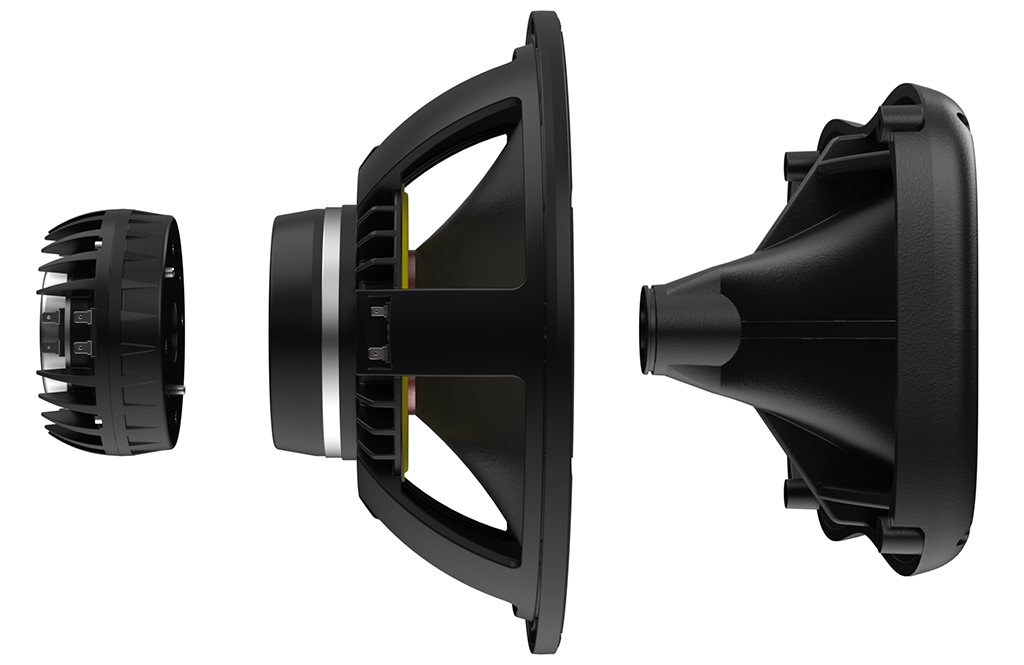

The THS triaxial transducer is a state-of-the-art device that offers remarkable features. The LF section includes a LF transducer of 15 Inch, Load reflex, which has a 4" coil, Waterproof cone and neodymium magnet structure.

A 4" midrange annular radiator and a 2.5" annular radiator for treble, both equipped with high-temperature polymer diaphragms, have been arranged coaxially on the back of the LF transducer and integrated into a quarter-inch output. This passes through the magnetic structure of the LF controller to an 85" horn.×50 Degrees. The horn itself is rotated by the user, with a large mouth to maintain control of the pattern through the media.

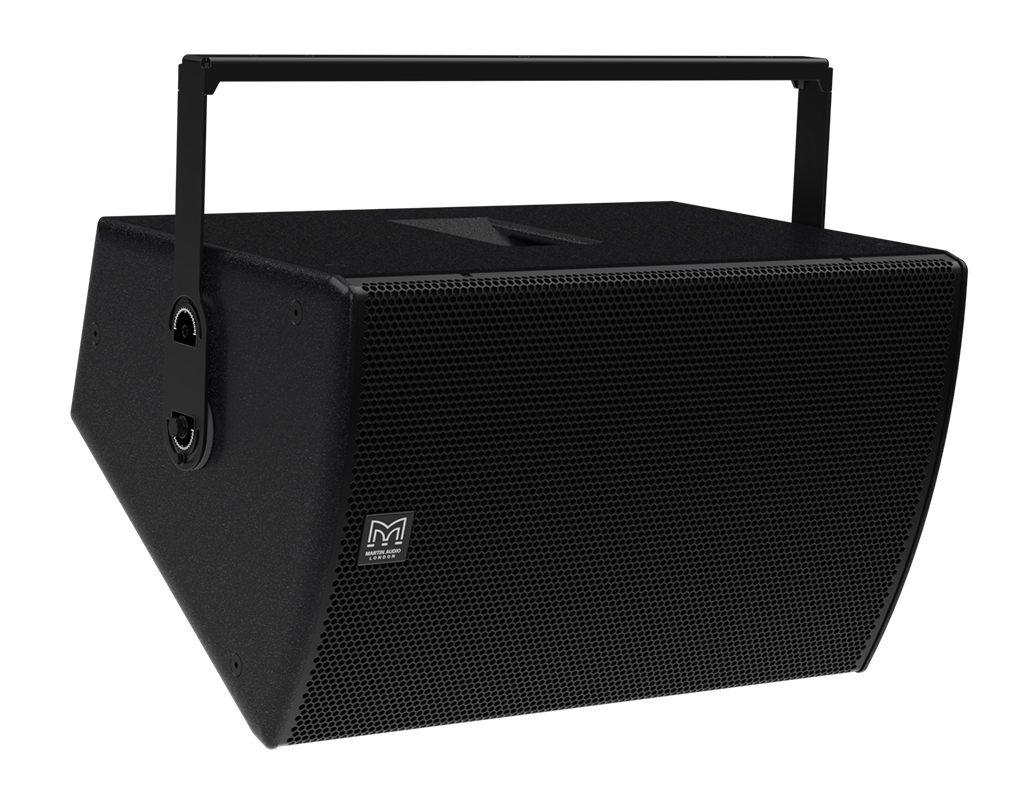

The solid and durable enclosure is constructed of birch plywood and finished with a durable textured paint. Incorporates multiple threaded attachment points that facilitate a variety of mounting options, both vertical and horizontal, including eyebolt mounting, yoke, Mast & Truss.

Two handles offer a great help for installation and transport, while its steel grating, with triple-layer polyester back, Protects speakers and prevents dust and water ingress.

"This has been a stellar year for Martin Audio's product launches with the addition of Torus 8, the FlexPoint series and now this powerful THS compact triaxial loudspeaker”, comments Dom Harter, CEO of the company.
